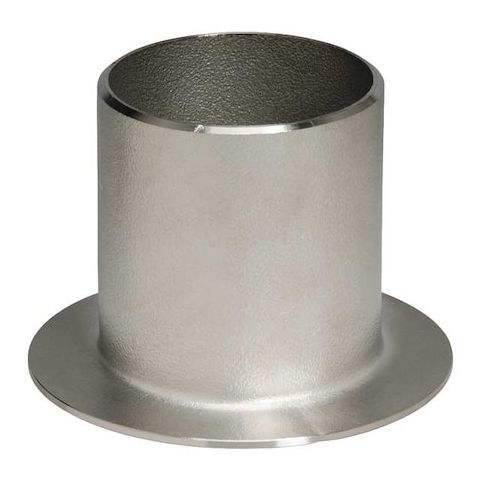

1/2" Butt Weld 316L SS Stub End Type C Sch 10 MPN:4381023600
The ZORO SELECT 4381023600 is a 316L stainless steel Stub End Type C pipe fitting designed for use with lap-joint flanges, providing a finished pipe stub and mating face for easy alignment. Its corrosion-resistant construction and butt-weld design make it ideal for applications where space constraints exist or frequent disassembly and inspection are required. Suitable for Schedule 10 piping, this fitting is perfect for use in industries such as chemical processing, food and beverage, and pharmaceuticals, where high-pressure and temperature resistance are crucial. Its compact size and durable design make it a reliable choice for a variety of applications.
Top product features:
- Material: 316L Stainless Steel for corrosion resistance
- Provides a finished pipe stub and mating face, allowing the loose flange to rotate for alignment
- Accommodates Schedule 10 pipe wall thickness for use in space-constrained or frequently disassembled applications
Top product applications:
- Space constraints exist where this fitting is applied to provide a finished pipe stub and mating face, allowing the loose flange to rotate for alignment.
- Frequent disassembly and inspection are required where this fitting is applied to accommodate the butt-welded connection.
- This fitting is used in lap-joint flange systems where a finished pipe stub and mating face are necessary for alignment.
The ZORO SELECT - 4381023600 is a 316L stainless steel Stub End Type C pipe fitting designed for use with lap-joint flanges. It provides a finished pipe stub and mating face, allowing the loose flange to rotate for alignment. The fitting is butt-welded to the pipe and is constructed to accommodate Schedule 10 pipe wall thickness. It is typically applied where space constraints exist or when frequent disassembly and inspection are required. The fitting is rated for use within specified pressure and temperature ranges and has an overall length of 2 inches, sized to connect with 1/2 inch nominal pipe.
Key Features:
- - Material: 316L Stainless Steel for corrosion resistance
- - Pipe Size (Both Ends): 1/2 in nominal size, suitable for Schedule 10 piping
- - Connection Type: Butt Weld on both Side A and Side B ends
- - Specific Shape: Stub End Type C, designed for lap-joint flange systems
- - Rated for use within specified pressure and temperature ranges
- - Overall Length: 2 inches
- - Standards: Dimensions and materials conform to ASTM A-403/A and 403M-88a
- - Color: Silver
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.15
