SS, Straight, 1/4"BSPTx1/4"ButtWeld MPN:ZUSA-PF-7526
Free Shipping
In Stock

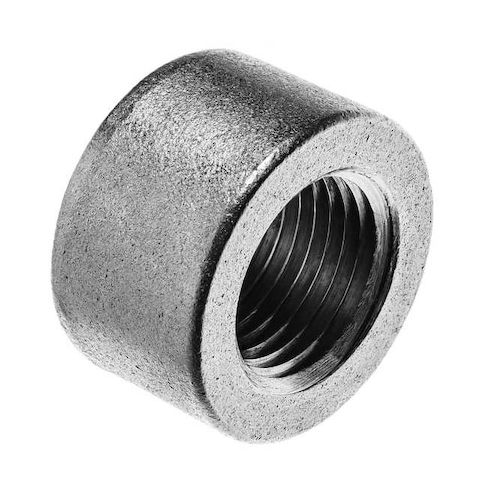

The ZORO SELECT ZUSA-PF-7526 is a versatile and reliable stainless steel pipe fitting designed for use in a variety of applications. Suitable for water, steam, chemical, and HVAC piping, this fitting provides corrosion resistance and can withstand pressures up to 150 psi. Made from 316 stainless steel, it meets ASME/ANSI Class 150 standards and features a female BSPT connection and a butt weld connection. This fitting is ideal for use in industrial, commercial, and residential settings, offering a durable and long-lasting solution for piping connections. Its compact design and easy installation make it a convenient choice for plumbers and engineers.
Top product features:
- 316 stainless steel provides corrosion resistance
- Female BSPT connection on side A allows for threaded connections
- Butt weld connection on side B enables seamless piping connections
Top product applications:
- Water
- Steam
- Chemical
The ZORO SELECT ZUSA-PF-7526 is a stainless steel pipe fitting rated for service up to 150 psi, meeting ASME/ANSI Class 150 standards. Made from 316 stainless steel provides corrosion resistance
- suitable for water, steam, chemical, and HVAC piping as defined by material grade 316. The fitting features a female BSPT connection on side A with a nominal pipe size of 1/4 inch and a threaded size of 19, and a butt weld connection on side B with the same nominal pipe size. Suitable for conveying fluids in piping connections up to 150 psi.
Key Features:
- - Application: Water, Steam, Chemical, HVAC
- - Class: 150
- - Color: Silver
- - Fitting Side A Gender: Female
- - Fitting Side A Nominal Pipe Size: 1/4 in
- - Fitting Side A Pipe Threading: 19
- - Fitting Side A Type: BSPT
- - Fitting Side B Nominal Pipe Size: 1/4 in
- - Fitting Side B Type: Butt Weld
- - Includes Pre-Applied Thread Sealant: No
- - Includes Seal: No
- - Material Grade: 316
- - Max. Steam Pressure: 150 psi
- - Maximum Operating Pressure: 150 psi
- - Overall Length: 13 mm
- - Standards: ISO 7-1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.70
- Package Width: 0.70
- Package Height: 0.40
- Package Weight: 0.02
