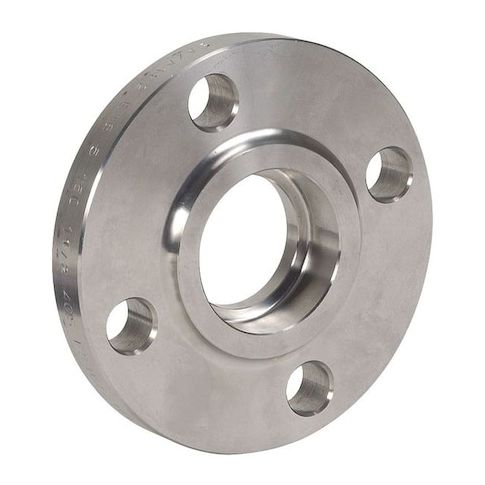

2 in 304 Stainless Steel Socket Weld Flange, Class 150, Raised Face, 6 in OD MPN:FLS41RFSW200
Free Shipping
In Stock
Elevate your industrial projects with the 2-inch 304 Stainless Steel Socket Weld Flange from GoVets Select. Designed for high-pressure applications, this flange boasts a Class 150 pressure rating and a maximum operating pressure of 150 psi, making it ideal for use in chemical processing, oil and gas, and power generation industries. Its raised face connection surface and socket weld design ensure a secure and leak-tight seal. With a temperature range of -60°F to 450°F, this flange is perfect for use in a variety of environments, from cryogenic to high-temperature applications.
Top product features:
- 304 Stainless Steel construction provides corrosion resistance
- Socket weld connection allows for secure attachment to pipe
- Raised face connection surface enables easy joining to other flanges
Top product applications:
- Chemical Processing
- High-Temperature Applications
- Oil and Gas Industry
The ZORO SELECT - FLS41RFSW200 is a 2-inch nominal pipe size socket weld flange made from 304 stainless steel. Designed with a recessed socket to accept the pipe end, it is secured by a fillet weld around the hub, Class 150 pressure rating
- maximum operating pressure 150 psi. This flange has a raised face connection surface and is classified as Class 150, supporting a maximum operating pressure of 150 psi. Media compatibility not specified
- refer to applicable codes and manufacturer guidelines. The flange conforms to ANSI B16.5 and ASTM A182 standards and operates within a temperature range of -60 Degrees to 450 Degrees F. Key Features:
- - Nominal Pipe Size: 2 inches
- - Flange Outside Diameter: 6 inches
- - Number of Bolt Holes: 4
- - Material Grade: 304 Stainless Steel
- - Connection Type: Welded (Socket Weld)
- - Pressure Rating: Class 150, Maximum Operating Pressure 150 psi
- - Connection Surface: Raised Face
- - Temperature Range: -60 Degrees to 450 Degrees F
- - Standards: ANSI B16.5
- ASTM A182
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 4.73
