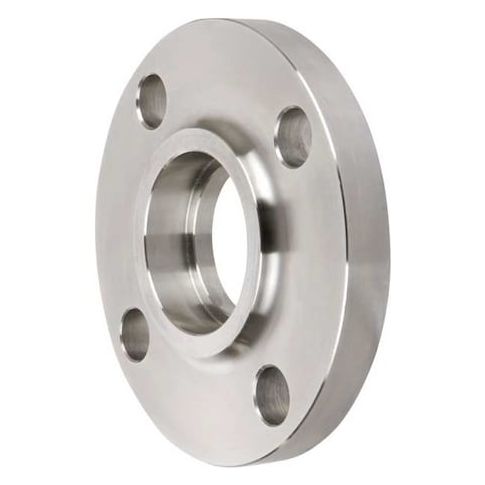

6" Welded SS Socket Weld Flange MPN:4381000700
This 6in Welded SS Socket Weld Flange is designed for high-pressure piping systems, providing a reliable and secure connection for small-diameter pipes. Crafted from 304 stainless steel, it offers corrosion resistance and durability, ensuring a long-lasting performance. The raised face connection surface and eight bolt holes facilitate easy attachment and disassembly, while the Class 150 rating allows for operation up to 150 psi. Suitable for applications in various industries, such as chemical processing, oil and gas, and power generation, this flange provides a pressure-tight, high-strength connection with good alignment and a smooth bore.
Top product features:
- Made of 304 stainless steel for corrosion resistance and durability.
- Class 150 rating indicating suitability for high-pressure applications up to 150 psi.
- Raised face connection surface for sealing contact with gaskets or mating surfaces.
Top product applications:
- High-pressure piping systems in chemical plants
- High-pressure piping systems in oil and gas refineries
- Welding and fabrication shops that require a reliable and durable flange connection
This product is a Class 150 stainless steel socket weld flange crafted from 304 stainless steel. It features a raised face connection surface and an outside diameter of 11 inches. Designed for small-diameter, high-pressure piping systems, it is rated for pressure applications up to 150 psi and a maximum operating pressure of 150 psi. The flange includes eight bolt holes around its perimeter and is intended for welded connections on 6-inch nominal pipe sizes. It is manufactured in accordance with ANSI B16.5 and ASTM A182 standards. Suitable for applications requiring a pressure-tight, high-strength connection with good alignment and a smooth bore, although it is limited in size and disassembly may be less convenient.
Key Features:
- - Made of 304 stainless steel for corrosion resistance and durability.
- - Class 150 rating indicating suitability for high-pressure applications up to 150 psi.
- - Raised face connection surface for sealing contact with gaskets or mating surfaces.
- - Outside diameter of 11 inches, compatible with 6-inch nominal pipes.
- - Eight bolt holes for secure attachment to compatible flanges.
- - Welded connection type intended for use in small-diameter, high-pressure piping systems.
- - Manufactured in accordance with ANSI B16.5 and ASTM A182 standards.
- - Rated for operation within the specified temperature range of -60°F to 450°F.
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 1.56
- Package Weight: 16.98
