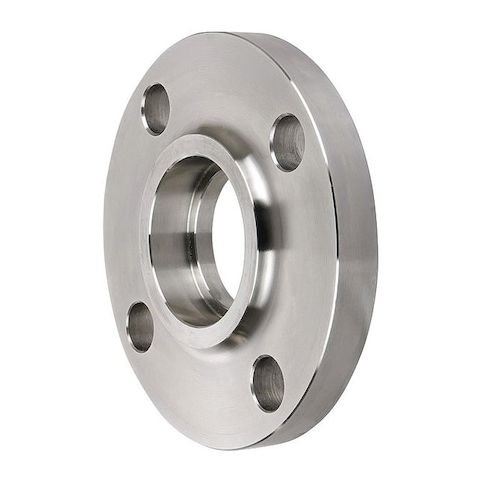

2" Socket Weld SS Socket Weld Flange Sch 40 MPN:4381004040

The ZORO SELECT 4381004040 is a stainless steel socket weld flange designed for small-diameter, high-pressure piping systems. Made from forged 304 stainless steel, it features a recessed socket that accommodates the pipe end, which is secured with a fillet weld to establish a pressure-tight connection. The flange has a bolt circle diameter of 5 inches, a flange outside diameter of 6-1/2 inches, and a flange thickness of 7/8 inches, with eight bolt holes of 3/4 inches diameter each. It is rated for operation within specified pressure ranges as per product specifications, with a maximum pressure of 720 psi and a maximum steam pressure of 300 psi, a nominal pipe size of 2 inches, and a length of 1-5/16 inches. Conforming to ASTM-SA182 and ANSI B16.5 standards (verification of standards compliance only), it is classified as Class 300, ensuring compatibility with pressure-rated piping systems.

Key Features:

• - Material: Forged 304 stainless steel providing corrosion resistance and strength
• - Connection Type: Socket weld flange with a recessed socket accepting pipe ends
• - Pressure Rating: Rated for operation within specified pressure ranges, including a maximum pressure of 720 psi and a maximum steam pressure of 300 psi
• - Bolt Circle Diameter: 5 inches, with 8 bolt holes of 3/4 inches diameter
• - Flange Dimensions: Outside diameter of 6-1/2 inches, flange thickness of 7/8 inches
• - Overall Length: 1-5/16 inches
• - Standards: ASTM-SA182 and ANSI B16.5, Class 300
• - Nominal Pipe Size: 2 inches
