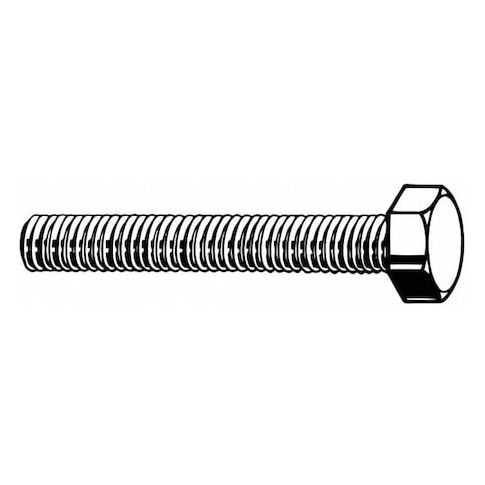

Grade A307, 1/4"-20 Hex Head Tap Bolt, Zinc Plated Steel, 1-1/4 in L, 100 PK MPN:U01209.025.0125

The ZORO SELECT - U01209.025.0125 is a Hex Head Tap Bolt, a type of fastener with a hexagonal head and machine screw threads that taper to a point. This bolt is designed for use in drilled and tapped holes, where it's tightened or loosened using an external hex drive such as a wrench or socket. Made from steel with zinc plated finish, this bolt meets the ASME B18.2.1 dimensional standards and ASTM A307 industry standards for use in various industrial applications.

• Drive: The external hex drive requires a wrench or socket of the same shape for application.
• Fastener Length: The 1-1/4 inch length is a measure of its potential depth of insertion.
• Finish: The Zinc Plated finish is intended to improve durability, corrosion resistance and aesthetic appeal.
• Globally Sourced: Procured from international manufacturers ensuring diverse range of quality options.
• Material Grade/Class: Grade A307 indicating strength, hardness and resistance properties suitable for industrial applications.
• Tensile Strength: This bolt has a tensile strength rating of 60,000 psi which represents the maximum pulling stress it can theoretically endure before failure.
• Thread Direction & Size: The right-hand thread direction tightens clockwise and the 1/4"-20 thread size is designed to match with corresponding nuts or holes
