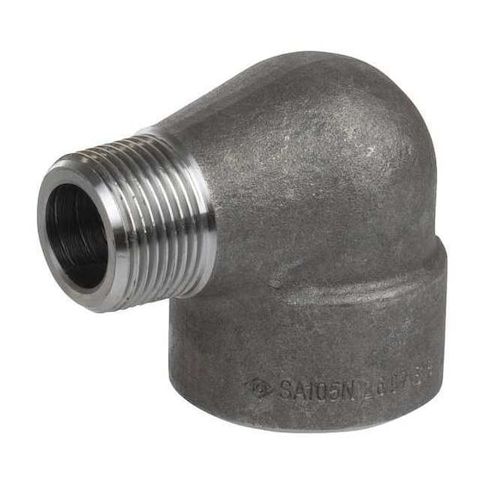

3/4" MNPT x FNPT SS Street 90 Degree Elbow MPN:4307000808
Directly connect pipes and fittings with the ZORO SELECT 90 Degree Street Elbow, a 304 stainless steel pipe fitting designed for change in flow direction at specified angles. This reliable fitting features one female and one male NPT threaded end, eliminating the need for an additional nipple. Constructed from corrosion-resistant stainless steel, it's ideal for industrial applications where mechanical strength and durability are crucial. Use in plumbing, HVAC, and other piping systems where a 90-degree change in direction is required. Its compact design and durable construction make it a valuable addition to any piping setup.
Top product features:
- The fitting features one female and one male NPT threaded end, allowing direct connection to another fitting or pipe without the need for an additional nipple.
- The fitting is constructed from 304 stainless steel, providing corrosion resistance and mechanical strength.
- The fitting is rated for Class 3000 pressure for industrial applications, allowing for reliable use in demanding environments.
Top product applications:
- HVAC systems for residential and commercial buildings
- Industrial piping systems for chemical processing and manufacturing
- Plumbing systems for water supply and drainage in buildings
The ZORO SELECT - 4307000808 is a 90 Degree Street Elbow stainless steel pipe fitting rated for change in flow direction at specified angles. It features one female and one male NPT threaded end, allowing direct connection to another fitting or pipe without the need for an additional nipple. Constructed from 304 stainless steel, this fitting is rated for corrosion resistance and mechanical strength within specified parameters. The fitting is sized for 3/4 inch nominal pipe connections and is rated for specified pipe schedules, with a pressure rating of Class 3000 for industrial applications.
Key Features:
- - Material: 304 Stainless Steel
- - Configuration: 90 Degree Street Elbow with one female and one male NPT threaded end (MNPT x FNPT)
- - Nominal Pipe Size: 3/4 inch on both ends
- - Outside Diameter: 1-13/16 inches
- - Rated for specified pressure class
- - Rated for specified maximum operating pressure at given temperature
- - Rated for specified maximum steam pressure at given temperature
- - Overall Length: 3 inches
- - Threads conform to ASME B1.20.1 NPT standard
- - Material and dimensions conform to ASTM A182 and ASME B16.11 standards
- - Does not include pre-applied thread sealant or additional seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.90
- Package Height: 2.00
- Package Weight: 1.20
