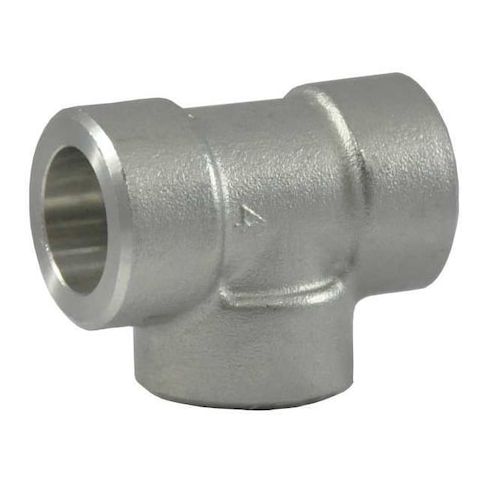

3/4" Socket Weld 316 SS Tee MPN:2UB68

• The ZORO SELECT - 2UB68 is a 3/4" stainless steel tee pipe fitting made from 316 stainless steel. It features three socket-weld ports (female sockets) for 3/4" piping on each end, forming a 90-degree tee. The fitting is rated for a maximum pressure of 3000 psi at 100°F and a maximum steam pressure of 2500 psi at 350°F. The product conforms to ASTM A182 material standards and ASME B16.11 specifications

• it is fabricated from 316 stainless steel.

  Key Features:

  • - Tee-shaped fitting with equal 3/4" nominal pipe size on all three ports.
  • - Made from 316 stainless steel for corrosion resistance.
  • - Socket weld connection type with female connections on all sides (A, B, and C).
  • - Pressure rating: Class 3000, maximum 3000 psi at 100°F for internal pressure.
  • - Maximum steam pressure: 2500 psi at 350°F.
  • - Confirmed compliance with ASTM-A-182 and ASME B16.11 standards.
  • - Does not include pre-applied thread sealant or seals.
