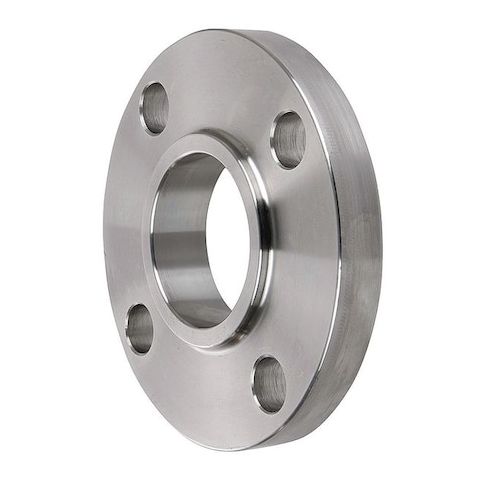

3 in Slip-On Flange, 304 Stainless Steel, Class 300, Raised Face MPN:4381003860
3 in Slip-On Flange, 304 Stainless Steel, Class 300, Raised Face
The ZORO SELECT - 4381003860 is a slip-on flange made from forged 304/304L stainless steel. It is designed to slip over a 3-inch pipe and is secured with fillet welds on both the inside and outside of the pipe. This flange features a raised face connection surface and is classified as Class 300, rated for use within the specified pressure range up to 720 psi under standard conditions. It conforms to ASTM-SA182 and ANSI B16.5 standards.
Key Features:
- - Nominal Pipe Size: 3 inches
- - Flange Outside Diameter: 8 1/4 inches
- - Bolt Circle Diameter: 6 5/8 inches
- - Bolt Hole Diameter: 7/8 inch, with a total of 8 bolt holes
- - Flange Thickness: 1 1/16 inches
- - Overall Length: 1 11/16 inches
- - Connection Type: Slip-On flange secured by inside and outside fillet welds
- - Material Grade: Forged 304/304L Stainless Steel
- - Maximum Operating Pressure: 720 psi
- - Maximum Steam Pressure: 300 psi rated for steam service up to 300 psi within the specified conditions
- - Pressure Class: Class 300
- - Connection Surface: Raised Face
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 8.40
- Package Height: 6.80
- Package Weight: 14.60
Product info last updated on January 27, 2026 1:37pm UTC
Category: Pipes, Valves and Fittings
