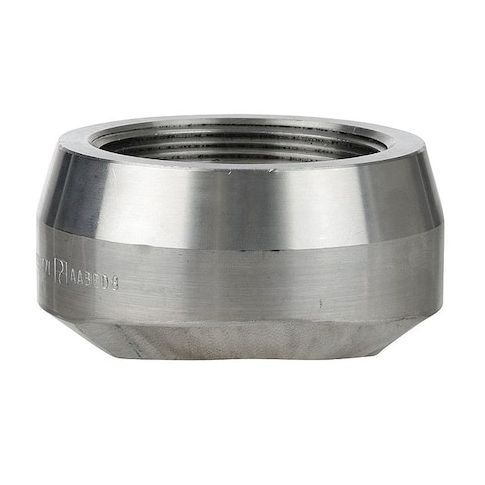

Threaded Outlet, 316 Stainless Steel, 1/2 in FNPT x 3/4 in Socket, Class 3000 MPN:4307003620
This 316 stainless steel threaded outlet fitting provides a reliable and durable connection for a wide range of applications. Its Class 3000 pressure rating makes it suitable for high-pressure systems, while its 1/2 inch FNPT and 3/4 inch socket connections allow for easy attachment of pipes, valves, gauges, and instruments. The fitting's machined, screw-type branch connection ensures a secure and leak-free seal, making it ideal for use in industries such as chemical processing, power generation, and oil and gas. With its corrosion-resistant 316 stainless steel construction, this fitting can withstand harsh environments and extreme temperatures.
Top product features:
- Classified as Class 3000 for pressure rating
- Female FNPT connection on side A, 1/2 inch nominal pipe size
- Provides a machined, screw-type branch connection with a threaded port rated for Class 3000 pressure
Top product applications:
- Attaching pipes to valves or gauges without welding
- Plugging into instruments or gauges
- Connecting pipes to fittings or other equipment in high-pressure applications
The ZORO SELECT - 4307003620 is a stainless steel threaded outlet pipe fitting made from 316 stainless steel material. It features a female FNPT connection with a 1/2 inch nominal pipe size side A and a female socket connection with a 3/4 inch nominal pipe size side B. Designed as an outlet, this fitting provides a machined, screw-type branch connection with a threaded port rated for Class 3000 pressure suitable for attaching pipes, valves, gauges, instruments, or plugs without welding. It is rated for Class 3000 pressure and maximum working pressure: 3000 psi, with a maximum steam pressure rating of 2810 psi @ 350°F. The fitting has a silver color and an outside diameter of 1-3/8 inches on side A.
Key Features:
- - Constructed from 316 stainless steel material grade.
- - Classified as Class 3000 for pressure rating.
- - Female FNPT connection on side A, 1/2 inch nominal pipe size.
- - Female socket connection on side B, 3/4 inch nominal pipe size.
- - Maximum working pressure: 3000 psi.
- - Maximum steam pressure rating: 2810 psi @ 350°F.
- - Outside diameter at side A: 1-3/8 inches.
- - Does not include pre-applied thread sealant or additional seals.
- - Conforms to MSS SP-97 standards.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.40
- Package Height: 1.20
- Package Weight: 0.30
