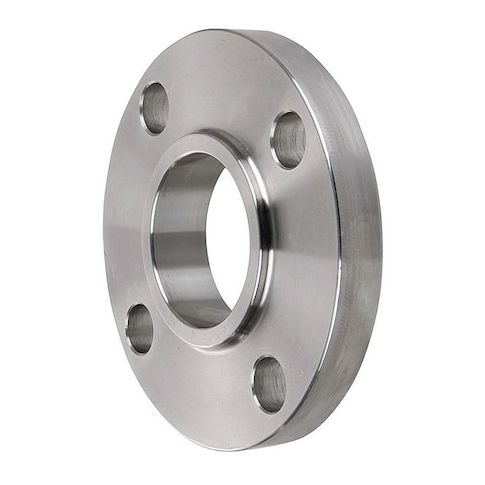

1" Slip On SS Slip-On Flange MPN:4381005420
The ZORO SELECT 4381005420 is a reliable and durable stainless steel slip-on flange designed for use in low- to moderate-pressure systems. Constructed from forged 316/316L stainless steel, this flange offers exceptional corrosion resistance and strength. Its slip-on design allows for easy installation and secure connection to matching pipes, while the four bolt holes and overall holes provide versatility for various applications. Suitable for use in industries such as chemical processing, oil and gas, and power generation, this flange is rated for operation at pressures up to 720 psi and steam pressure up to 300 psi, making it a reliable choice for demanding environments.
Top product features:
- Forged 316/316L stainless steel offers corrosion resistance and strength.
- Slip-on flange design allows for easy installation and secure connection to a matching pipe.
- Rated for operation at pressures up to 720 psi and steam pressure up to 300 psi, suitable for lowto moderate-pressure systems.
Top product applications:
- Low-to-moderate pressure systems
- High-temperature applications
- Corrosive environments
The ZORO SELECT 4381005420 is a stainless steel slip-on flange constructed from forged 316/316L stainless steel material. It features a bolt circle diameter of 3 1/2 inches, a bolt hole diameter of 3/4 inches, a flange outside diameter of 4 7/8 inches, and a flange thickness of 9/16 inches. This flange is designed to slip over a matching pipe and is secured with fillet welds on both sides. It is rated for operation at pressures up to 720 psi and steam pressure up to 300 psi. It has a nominal pipe size of 1 inch, with four bolt holes and four overall holes, suitable for low- to moderate-pressure systems, and complies with ASTM-SA182 and ANSI B16.5 standards.
Key Features:
- - Material: Forged 316/316L stainless steel offers corrosion resistance and strength.
- - Connection Type: Slip-On flange.
- - Pressure Rating: Rated for operation at pressures up to 720 psi and steam pressure up to 300 psi.
- - Bolt Circle Diameter: 3 1/2 in for bolt-hole alignment.
- - Flange Outside Diameter: 4 7/8 in, with a flange thickness of 9/16 in.
- - Bolt Hole Diameter: 3/4 in
- Number of Bolt Holes: 4.
- - Standard Compliance: ASTM-SA182 and ANSI B16.5.
- - Overall Length: 1 1/16 in
- Nominal Pipe Size: 1 in.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 6.00
- Package Height: 1.20
- Package Weight: 3.10
