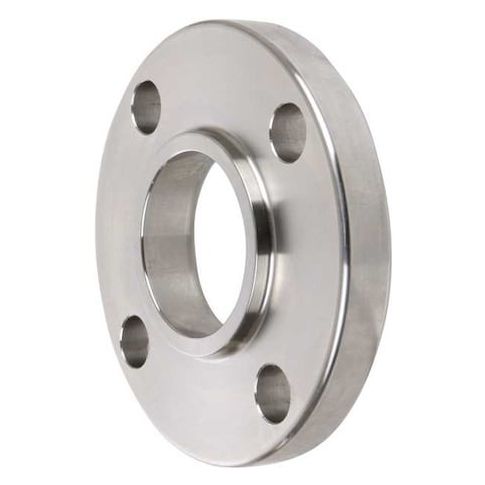

1" Welded SS Slip-On Flange MPN:4381002220

• The ZORO SELECT 4381002220 is a slip-on flange made of 316 stainless steel, rated for operation up to 150 psi. Its flange features a raised face surface and a 4-1/4 inch outside diameter, with a nominal pipe size of 1 inch. The flange's welded connection type provides welded connection to pipes or fittings, constructed from 316 stainless steel, providing corrosion resistance. It conforms to standards including ANSI B16.5 and ASTM A182, and operates within a temperature range of -60°F to 450°F.

  Key Features:

  • - Material: 316 Stainless Steel, providing corrosion resistance
  • - Fitting Shape: Slip-On Flange
  • - Connection Surface: Raised Face
  • - Flange Outside Diameter: 4 1/4 in
  • - Nominal Pipe Size: 1 in
  • - Fitting Connection Type: Welded
  • - Connection Type: Welded
  • - Pressure Class: Class 150
  • - Standards: ANSI B16.5
  • ASTM A182
  • - Max. Pressure: 150 psi
  • - Temperature Range: -60°F to 450°F
  • - Number of Bolt Holes: 4
  • - Number of Holes: 4
