Full Face Aramid Flange Gasket for 3/4" Pipe, 1/16" Thick, No 150 MPN:BULK-FG-2
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G2433297

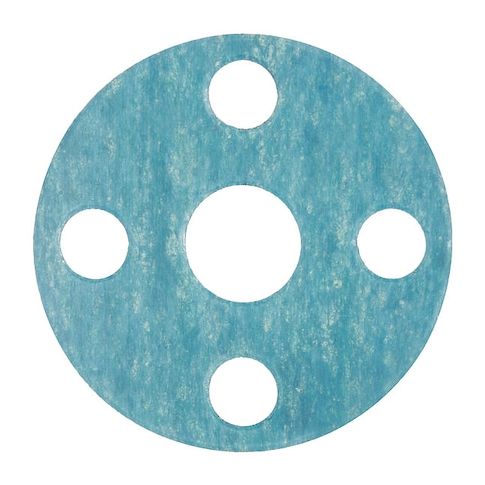

Full Face Aramid Flange Gasket for 3/4" Pipe, 1/16" Thick, No 150
This full-face aramid flange gasket is designed for use with 3/4in pipe and ANSI Class 150 flanges. Its aramid material provides exceptional durability and resistance to extreme temperatures, ranging from -100°F to 400°F. The gasket's thickness of 1/16in ensures a secure seal, while its green color makes it easy to identify. Suitable for a variety of applications, including chemical processing, oil and gas, and power generation, this gasket offers long-lasting performance and reliability. Its compact size and lightweight design make it easy to handle and install, reducing downtime and increasing productivity in demanding industrial environments.
Top product features:
- Aramid material provides high temperature resistance up to 400 Degrees F.
- The gasket is designed as a full-face gasket for a 3/4in pipe.
- The gasket has four bolt holes with a diameter of 5/8in.
Top product applications:
- Chemical Processing
- Pulp and Paper Manufacturing
- Oil and Gas Industry
Full Face Flange Gasket, Gasket Material Aramid, Insert Material None, For Pipe Size 3/4 in, For Flange ANSI Class 150, Binder Material Buna-N, Color Green, Inside Diameter 1 1/16 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 400 Degrees F, Outside Diameter 3 7/8 in, Thickness 1/16 in, Number of Bolt Holes 4, Bolt Hole Diameter 5/8 in, Gasket Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 6
- Unit of Measure: EA
- Package Length: 0.10
- Package Width: 4.40
- Package Height: 4.40
- Package Weight: 0.10
Product info last updated on January 31, 2026 8:30am UTC
Category: Sealing and Gasketing
