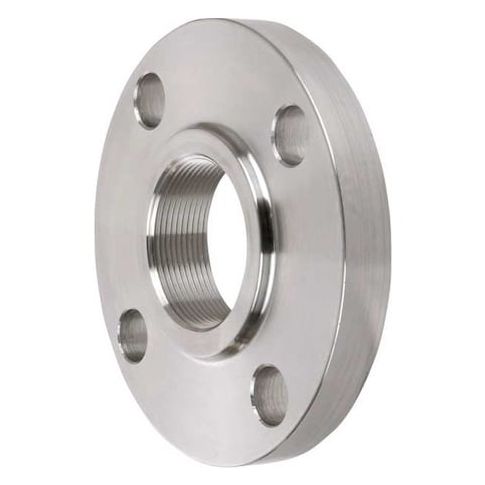

2-1/2" FNPT SS Threaded Flange MPN:4381001060
This 2-1/2in stainless steel flange is designed for use in piping systems to connect pipes, valves, pumps, and other equipment. Constructed from 304 stainless steel, it features a raised face connection surface and FNPT threaded ends, ideal for flange assemblies using gaskets and bolts. With a maximum pressure rating of 150 psi and a temperature range from -60 to 450 degrees Fahrenheit, this flange is suitable for various industrial applications, including chemical processing, oil and gas, and food and beverage production. Its durability and resistance to corrosion make it a reliable choice for demanding environments.
Top product features:
- 304 Stainless Steel construction
- Raised Face connection surface
- Female National Pipe Thread (FNPT) threaded ends
Top product applications:
- Piping systems to connect pipes, valves, pumps, and other equipment
- Industrial processes that require high temperature and pressure resistance
- Chemical processing plants where corrosion resistance is crucial
The ZORO SELECT - 4381001060 is a stainless steel flange designed for use in piping systems to connect pipes, valves, pumps, and other equipment. Constructed from 304 stainless steel, this flange features a raised face connection surface and FNPT threaded ends, designed for flange assemblies using gaskets and bolts. The flange is rated to operate at a maximum pressure of 150 psi and a temperature range from -60 to 450 degrees Fahrenheit. It conforms to ANSI B16.5 and ASTM A182 standards. Key Features:
- - Material: 304 Stainless Steel
- - Nominal Pipe Size: 2 1/2 in
- - Flange Outside Diameter: 7 in
- - Connection Surface: Raised Face
- - Fitting Connection Type: Female National Pipe Thread (FNPT)
- - Pressure Rating: Class 150 (150 psi maximum operating pressure)
- - Number of Bolt Holes: 4
- - Temperature Range: -60 to 450 °F
- - Standards: ANSI B16.5
- ASTM A182
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 7.00
- Package Height: 1.12
- Package Weight: 8.16
