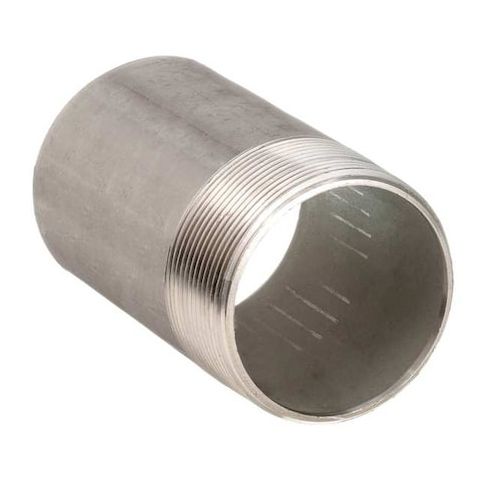

PipeNipple, SS, 3/4", NPT, 11/2" MPN:T6WNE2

• The ZORO SELECT T6WNE2 is a stainless steel nipple designed for connecting two female-threaded fittings or pipes. It features male threads on one or both ends and is rated for use with piping systems handling air, natural gas, non-potable water, propane, or steam within the maximum rated pressure of 1563 psi at 650°F. It is made from 316 stainless steel and rated for maximum pressure 1563 psi at 650°F.

  Key Features:

  • - Material: 316 stainless steel
  • - Shape: Nipple, a short length of pipe with male threaded ends
  • - Inside Diameter: 53/64 in
  • - Outside Diameter: 1 3/64 in
  • - Length: 1 1/2 in
  • - Connection Type: Threaded on one end, MNPT (Male National Pipe Thread)
  • - Thread Configuration: Threaded on one end
  • - Standards: ASME B1.20.1
  • ASTM A312
  • ASTM A733
  • - Max. Pressure: 1563 psi at 650°F
  • - Overall Pipe Length: 1.5 in
  • - Wall Thickness: 0.109 in
  • - Basic Pipe Fitting Material: Metal
  • - Fittings Sub-Category: Nipples
  • - Inside Diameter: 53/64 in
  • - Nominal Pipe Size: 3/4 in
  • - Pipe Connection Type: Threaded on One End
