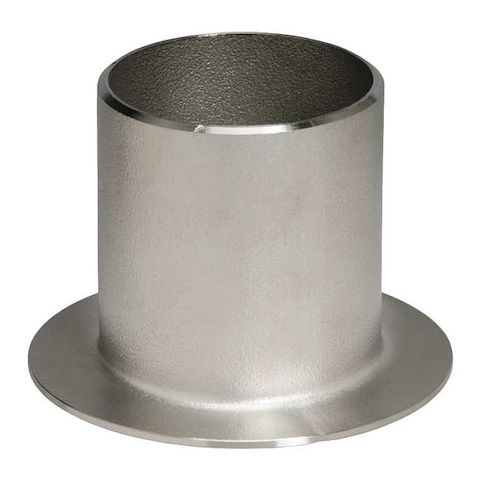

4 in Butt Weld Stub End Type C, Schedule 10, 304L Stainless Steel MPN:4381023280
This 4 in Butt Weld Stub End Type C is a versatile and reliable pipe fitting designed for use with lap-joint flanges. Its finished pipe stub and mating face enable easy alignment and rotation of the loose flange, making it ideal for applications where space is limited or frequent disassembly and inspection are required. Constructed from 304L stainless steel, this fitting provides excellent corrosion resistance and durability. Its silver finish and Schedule 10 wall thickness classification make it suitable for a wide range of applications, including chemical processing, oil and gas, and food processing industries, where high pressure and temperature resistance are essential.
Top product features:
- Provides a finished pipe stub and mating face while allowing the loose flange to rotate for alignment.
- Has a butt-welded connection on both ends for secure and leak-free attachment to the pipe.
- Offers a maximum operating pressure of 275 psi at 150°F for safe and reliable use in high-pressure applications.
Top product applications:
- Pipe fitting for lap-joint flanges in applications where space is limited or frequent disassembly and inspection are required.
- Pipe connections in industrial processes involving high-temperature fluids.
- High-pressure pipe connections in applications such as power generation or chemical processing.
The ZORO SELECT - 4381023280 is a 304L stainless steel Stub End Type C pipe fitting designed for use with lap-joint flanges. It provides a finished pipe stub and mating face while allowing the loose flange to rotate for alignment. This short-pattern weld-in fitting is butt-welded to the pipe and is suitable where space is limited or frequent disassembly and inspection are required. It has a nominal pipe size of 4 inches with a Schedule 10 wall thickness classification and a silver finish. Key Features:
- - Material: 304L stainless steel.
- - Shape: Stub End Type C, providing a pipe stub and mating face.
- - Connection Type: Butt weld on both ends.
- - Nominal Pipe Size: 4 inches with a 4 1/2 inch outside diameter at Side A.
- - Pressure Rating: Maximum operating pressure of 275 psi at 150°F.
- - Length: Overall length of 3 inches.
- - Standards: ASTM A403/A403M-88a.
- - Color: Silver finish.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 6.20
- Package Height: 3.00
- Package Weight: 1.69
