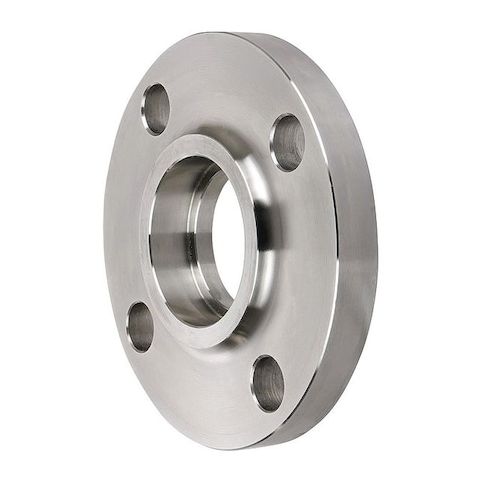

1-1/2" Socket Weld SS Socket Weld Flange Sch 40 MPN:4381005640

• The ZORO SELECT - 4381005640 is a socket weld flange made of forged 316/316L stainless steel, designed for stainless steel piping systems. It features a recessed socket that accepts the pipe end, which is secured by a weld designed to meet industry standards for pressure containment. This type of flange is suitable for small-diameter, high-pressure applications and features a smooth bore and alignment as specified

• disassembly frequency is dependent on application conditions. The flange is manufactured in accordance with ASTM-SA182 and ANSI B16.5 standards and is designated for Class 300 pressure applications within a maximum pressure of 720 psi.

  Key Features:

  • - Nominal pipe size: 1-1/2 in with a pipe fitting schedule of Sch.40 and Class 300 rating.
  • - Flange dimensions include a 5 1/4 in outside diameter, 3/4 in thickness, 4 bolt holes with a 4 1/2 in bolt circle diameter, and 7/8 in bolt hole diameter.
  • - Connection type: Socket Weld, intended for socket weld connections in accordance with applicable standards.
  • - Material: Forged 316/316L stainless steel for corrosion resistance.
  • - Maximum pressure rating: 720 psi
  • suitable for applications within this specification.
  • - Overall length of the fitting is 1 3/16 in with an outside connection diameter of 6-1/8 in.
  • - Connection surface: Raised Face to accommodate gaskets and bolts for sealing.
