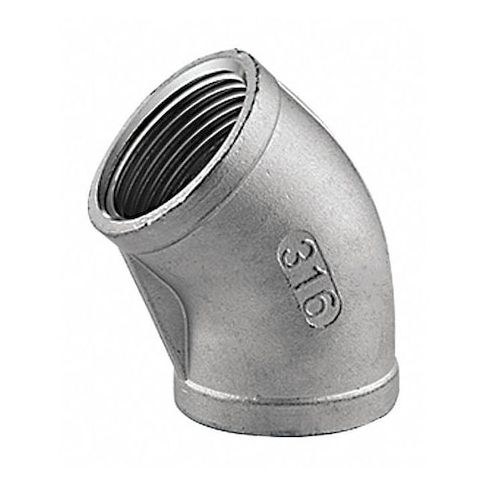

1-1/2" FNPT 316 SS 45 Degree Elbow MPN:604E111N112

The ZORO SELECT - 604E111N112 is a 45 Degree Elbow stainless steel pipe fitting constructed from 316 stainless steel. It changes flow direction by 45 degrees. This fitting features female National Pipe Thread (NPT) connections on both ends, sized at 1-1/2 inches nominal pipe size, with 11 threads per inch. It is suitable for air, non-potable water, potable water, oil, and steam up to 150 psi, per manufacturer specifications, and Maximum operating pressure: 300 psi. The fitting conforms to ANSI Standards B1.20.1 and is classified as Class 150 for pressure rating.

Key Features:

• - Material: 316 stainless steel
• - Shape: 45 Degree Elbow, suitable for creating a 45° directional change in piping systems.
• - Connection Type: Female NPT threaded ends on both sides.
• - Nominal Pipe Size: 1-1/2 inches for both ends.
• - Thread Specification: 11 threads per inch on both ends.
• - Maximum operating pressure: 300 psi
• - Suitable for air, non-potable water, potable water, oil, and steam up to 150 psi, per manufacturer specifications
• - Color: Silver.
• - Does not include pre-applied thread sealant or additional sealing components.
