Adapter, Stainless Steel, 1/4 in FNPT x 1/4 in MNPT, 316 Grade, 6, 600 psi MPN:ZUSA-PF-8765
Free Shipping
In Stock

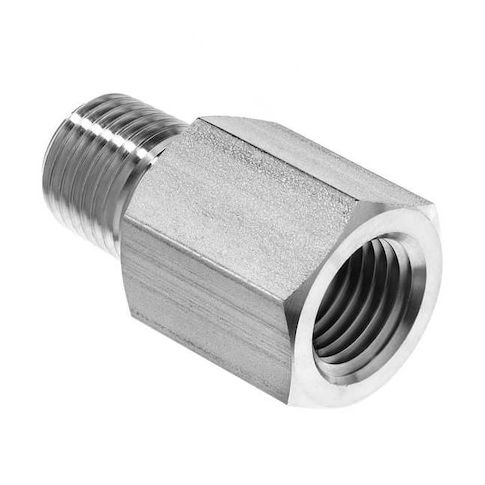

This stainless steel instrumentation pipe fitting is designed to connect small-diameter tubing and piping in a variety of systems, including air, natural gas, oil, potable water, and steam systems. Constructed from durable grade 316 stainless steel, it provides excellent corrosion resistance and meets applicable pressure and leak test standards. The adapter features a 1/4 in BSPT female connection and a 1/4 in NPT male connection, accommodating different thread types and standards. Suitable for instrumentation, sampling, and control system applications, it is rated for operation at pressures up to 6,600 psi, making it an ideal solution for industrial piping systems.
Top product features:
- The fitting transitions between a 1/4 in BSPT female connection and a 1/4 in NPT male connection, accommodating different thread types and standards.
- The fitting is constructed from grade 316 stainless steel rated for use with air, natural gas, oil, potable water, and steam systems within specified parameters.
- The fitting is rated for operation at pressures up to 6,600 psi.
Top product applications:
- Connecting small-diameter tubing and piping in instrumentation systems
- Sampling and control system applications
- Connecting different thread types and standards in various system types
The ZORO SELECT - ZUSA-PF-8765 is a stainless steel instrumentation pipe fitting designed as an adapter to connect small-diameter tubing and piping. Constructed from grade 316 stainless steel rated for use with air, natural gas, oil, potable water, and steam systems within specified parameters, this fitting is suitable for various system types. It is designed to meet applicable pressure and leak test standards for instrumentation, sampling, and control system applications. The fitting transitions between a 1/4 in BSPT female connection and a 1/4 in NPT male connection, accommodating different thread types and standards. It is rated for operation at pressures up to 6,600 psi and measures 1 3/8 inches in overall length.
Key Features:
- - Material: 316 stainless steel for corrosion resistance and durability.
- - Connection Type Side A: 1/4 in BSPT female with 19 threads per inch.
- - Connection Type Side B: 1/4 in NPT male with 18 threads per inch.
- - Hex size: 3/4 in across flats for wrench tightening.
- - Rated for operation within a maximum pressure of 6,600 psi.
- - Overall length: 1 3/8 in. (as specified)
- - Certified to ANSI B31.1 standards for industrial piping.
- - Omit from description
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.42
- Package Width: 0.87
- Package Height: 0.75
- Package Weight: 0.27
