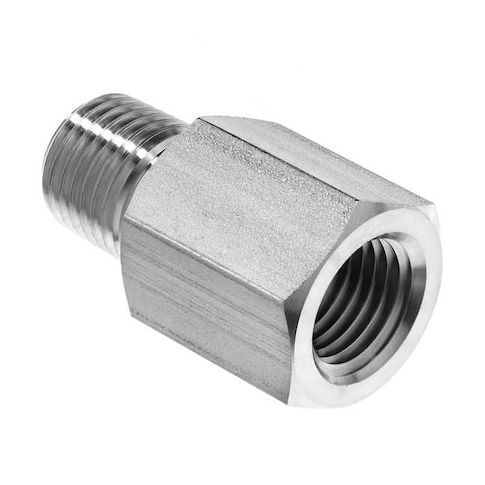

Adapter, Stainless Steel, 1/4 in FNPT x 1/4 in MNPT, 3/4 in Hex, 6, 200 psi MPN:ZUSA-PF-7835

The ZORO SELECT - ZUSA-PF-7835 is a stainless steel instrumentation pipe fitting designed as an adapter to connect small-diameter tubing and piping in instrumentation, sampling, and control systems. It features female and male NPT threaded connections on Side A and Side B respectively, both sized 1/4 inch with 18 threads per inch, which allows connection between matching 1/4 in NPT threaded components. Constructed from 304 stainless steel, this fitting is suitable for conveying air, natural gas, oil, potable water, and steam and complies with ANSI B31.1 standards. Maximum operating pressure: 6,200 psi.

Key Features:

• - Material: 304 stainless steel.
• - Connection type: Side A female NPT, Side B male NPT, both 1/4 in nominal pipe size with 18 TPI threading.
• - Maximum operating pressure: 6,200 psi.
• - Overall length: 1-3/8 in.
• - Hex size: 3/4 in across flats for wrenching.
• - Applications include air, natural gas, oil, potable water, and steam systems.
• - Compliant with ANSI B31.1 and low lead requirements for potable water.
• - Does not include pre-applied thread sealant or seals.
• - Color: Silver.
