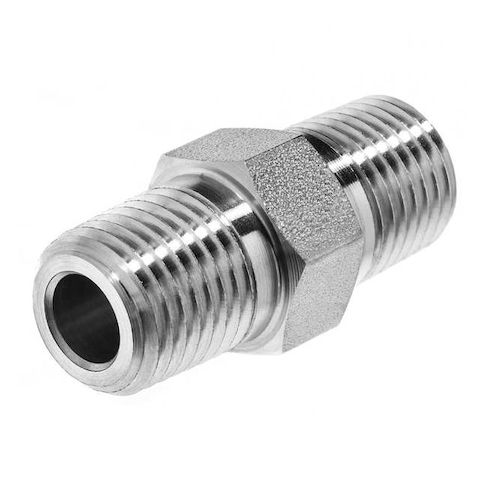

StainlessSteel, Straight, 3/8"NPTx3/8"NPT MPN:ZUSA-PF-7823

• The ZORO SELECT ZUSA-PF-7823 is a stainless steel instrument fitting designed for connecting small-diameter tubing and piping in instrumentation systems. Made from 304 stainless steel, it features a male threaded end with an 18 TPI NPT connection on Side A, and a male threaded end with the same specifications on Side B. With a maximum operating pressure of 7,300 psi and an overall length of 2 inches, the joint is rated for operation up to 7,300 psi

• compatibility with fluids/gases should be verified via the product data sheet.

  Key Features:

  • - Material: 304 stainless steel for corrosion resistance and durability
  • - Applications: Air, Natural Gas, Oil, Potable Water, Steam
  • compatibility should be checked per the product data sheet
  • - Fitting Side A Gender: Male
  • - Fitting Side A Nominal Pipe Size: 3/8 in
  • - Fitting Side A Pipe Threading: 18
  • - Fitting Side A Type: NPT
  • - Fitting Side B Gender: Male
  • - Fitting Side B Nominal Pipe Size: 3/8 in
  • - Fitting Side B Pipe Threading: 18
  • - Fitting Side B Type: NPT
  • - Overall Length: 2 in
  • - Hex Size: 3/4 in
  • - Includes Pre-Applied Thread Sealant: No
  • - Includes Seal: No
  • - Max Operating Pressure: 7,300 psi
  • - Standards: ANSI B31.1
  • - Color: Silver
