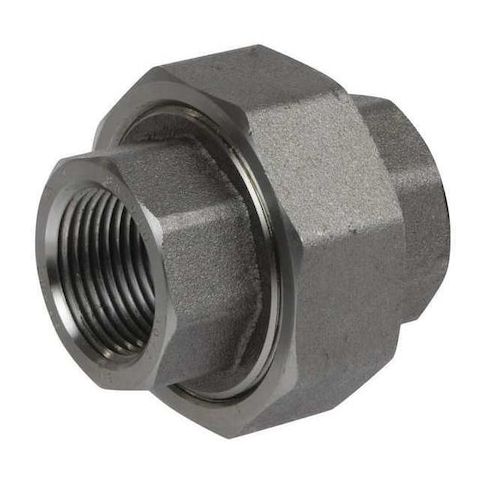

304 Stainless Steel Threaded Union, 1/4 in FNPT, Class 3000 MPN:2UA95
Free Shipping
In Stock
Join pipes with ease and precision using the 304 Stainless Steel Threaded Union from GoVets Select. This three-piece mechanical fitting allows for connection and disconnection without rotating the pipes, making it ideal for applications where flexibility is key. Constructed from corrosion-resistant stainless steel, this union is rated for operation up to 2900 psi at 100°F and up to 2500 psi steam at 350°F. Perfect for use in high-pressure systems, chemical processing, and other industries where reliability and durability are paramount. Its compact size and easy installation make it a great choice for a variety of applications, including HVAC, plumbing, and industrial piping.
Top product features:
- The union is designed to enable connection and disconnection without rotating the pipes.
- The union is constructed from corrosion-resistant stainless steel.
- The union is rated for operation up to 2900 psi at 100°F and up to 2500 psi steam at 350°F.
Top product applications:
- High-pressure industrial piping system
- Steam distribution systems
- Plumbing systems for high-temperature applications
The ZORO SELECT - 2UA95 is a 304 stainless steel pipe union designed to join two 1/4-inch pipe ends with female NPT threaded connections. This three-piece mechanical fitting (consisting of the body, nut, and mating seat or gasket) enables connection and disconnection without rotating the pipes. Constructed from corrosion-resistant stainless steel, the union is rated for operation up to 2900 psi at 100°F and up to 2500 psi steam at 350°F and conforms to ASTM-A-182 for material, ANSI/ASME B1.20.1 for threads, and meets MSS SP-83 standards. Key Features:
- - Nominal pipe size: 1/4 inch on both ends with female NPT connections
- - Class 3000 pressure rating
- - Maximum pressure: 2900 psi at 100°F
- - Maximum steam pressure: 2500 psi at 350°F
- - Thread size: 18 threads per inch on both ends
- - Does not include pre-applied thread sealant or seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.63
- Package Width: 1.34
- Package Height: 1.34
- Package Weight: 0.62
