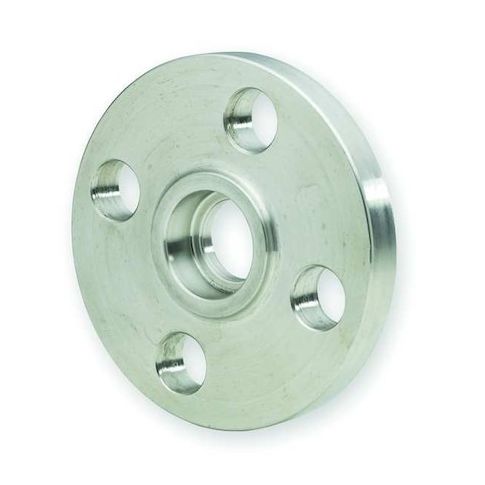

1/2" Socket Weld SS Flange MPN:4381000600
The ZORO SELECT socket weld flange is a high-quality, forged 304/304L stainless steel component designed for use in various industrial applications. Its raised face sealing surface ensures a secure and leak-free connection, making it ideal for use in high-pressure systems. Compliant with ASTM-SA182 and ANSI B16.5 standards, this flange is suitable for a wide range of industries, including chemical processing, oil and gas, and power generation. Its compact size and ease of installation make it a convenient choice for engineers and technicians, while its durability and resistance to corrosion ensure a long-lasting performance.
Top product features:
- Forged 304/304L stainless steel construction provides high strength and resistance to corrosion.
- Raised face flange features a sealing surface that ensures a secure and leak-free connection.
- Four bolt holes with a bolt circle diameter of 2 3/8 inches allow for secure and easy installation.
Top product applications:
- Pipe Fittings and Flanges
- Chemical Processing Plants
- Petrochemical Refineries
The ZORO SELECT - 4381000600 is a socket weld flange made of forged 304/304L stainless steel.
It is rated for operation within the specified pressure ranges. This flange features a raised face sealing surface and is compliant with ASTM-SA182 and ANSI B16.5 standards. Its nominal pipe size is 1/2 inch, with a bolt circle diameter of 2 3/8 inches and four bolt holes sized at 5/8 inches each.
Key Features:
- - Material: Forged 304/304L stainless steel.
- - Connection Type: Socket weld connection.
- - Pressure Rating: Class 150, rated for operation within specified pressure ranges.
- - Dimensions: Outside diameter of 3 1/2 inches and thickness of 7/16 inch.
- - Bolt Details: Four bolt holes with a bolt hole diameter of 5/8 inch arranged on a 2 3/8 inch bolt circle.
- - Sealing Surface: Raised face flange.
- - Standards: Complies with ASTM-SA182 and ANSI B16.5 specifications.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 0.70
- Package Weight: 0.99
