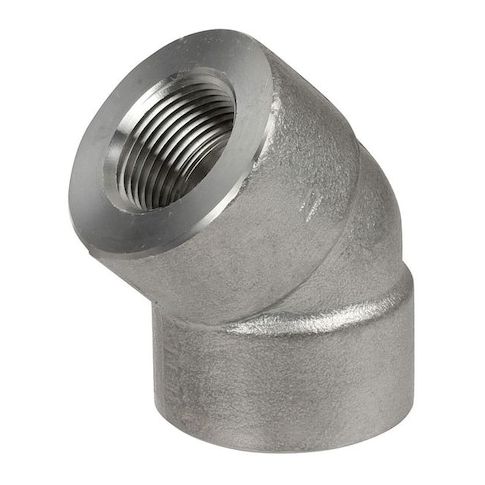

45° Elbow, 316 Stainless Steel, 3/8 in FNPT, Class 3000 MPN:4307001254
Upgrade your piping systems with the ZORO SELECT 45° Elbow, crafted from durable 316 stainless steel for corrosion resistance and high strength. Suitable for various applications in industrial, process, HVAC, and plumbing systems, this fitting provides a 45° flow direction change, ideal for pipe connection, pressure management, and flow redirection. With a Class 3000 pressure rating and maximum pressure capacity of 3,000 psi at 100°F, it's perfect for demanding environments. Enhance your system's performance and reliability with this reliable 45° elbow, ideal for use in chemical processing, power generation, and other high-pressure applications.
Top product features:
- 316 stainless steel construction provides corrosion resistance and high strength in various applications.
- The 45° flow direction change allows for redirection of fluid flow in piping systems.
- Compliance with ASME B16.11 standards ensures the fitting meets industry requirements for pressure and flow management.
Top product applications:
- Industrial piping systems
- Process systems
- HVAC systems
The ZORO SELECT - 4307001254 is a stainless steel 45 Degree Elbow rated for 45° flow direction change in piping systems. Made from durable 316 stainless steel, it is rated for use in environments requiring corrosion resistance and high strength. The fitting is suitable for various applications involving pipe connection, pressure management, and flow redirection in industrial, process, HVAC, and plumbing systems. It features a Class 3000 pressure rating and a maximum pressure capacity of 3,000 psi at 100°F, with a maximum steam pressure of 2,810 psi at 350°F.
Key Features:
- - Material grade: 316 stainless steel as specified
- - Connection type: FNPT end connections as specified
- - Pressure rating: rated for pressure up to Class 3000 (objective, based on standards)
- - Size: nominal pipe size of 3/8 inches
- outside diameter: 1 5/16 inches
- - Angle: 45 degrees as specified
- - Overall length: 1 inch as specified
- - Standards: complies with ASME B1.20.1 threads
- materials conform to ASTM A182 and ASME B16.11 standards
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.40
- Package Height: 2.00
- Package Weight: 0.60
