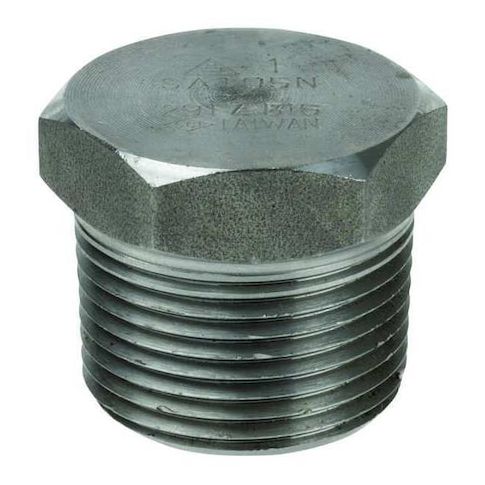

Hex Head Plug, 3/4 in, 304 Stainless Steel, Class 3000, MNPT, 1 in Overall Length MPN:4307000458
The ZORO SELECT 4307000458 is a reliable and durable 3/4-inch hex head plug made from 304 stainless steel, designed to close off the end of pipes, fittings, or ports in industrial and commercial settings. Its solid plug construction with MNPT threaded connections ensures a secure and leak-free seal, meeting Class 3000 pressure ratings and compatible with MNPT threaded systems. Ideal for use in high-pressure applications, such as steam and hydraulic systems, this plug provides peace of mind with its ability to withstand extreme temperatures and pressures. Suitable for various industries, including manufacturing, oil and gas, and HVAC.
Top product features:
- The hex head allows tightening and removal using a wrench.
- The solid plug construction provides a secure seal for the pipe, fitting, or port.
- The plug features a Male National Pipe Thread (MNPT) connection conforming to ASME B1.20.1 NPT standards.
Top product applications:
- Pipe Closure
- Fitting Closure
- Port Blocking
The ZORO SELECT - 4307000458 is a 3/4-inch hex head plug constructed from 304 stainless steel, designed to close off the end of a pipe, fitting, or port. It features a solid plug construction with MNPT threaded connections conforming to ASME B1.20.1 NPT standards. Rated for Class 3000 pressure with a maximum working pressure of 2,570 psi at 100°F and maximum steam pressure of 1,965 psi at 350°F. Compatible with MNPT threaded systems within the specified pressure and temperature ratings (Class 3000, max 2,570 psi at 100°F, max steam 1,965 psi at 350°F). The hex head allows tightening and removal using a wrench. Key Features:
- - Material Grade: 304 Stainless Steel, meeting ASTM A182 specifications
- - Connection Type: Male National Pipe Thread (MNPT)
- - Nominal Pipe Size: 3/4 inch with an outside diameter of 1-3/64 inches
- - Plug Drive Style: 3/4 inch hex head, with a hex size of 1 inch across flats
- - Solid plug construction
- rated for Class 3000 pressure (2,570 psi at 100°F)
- - Overall Length: 1 inch
- - Pressure Rating: Class 3000, max pressure 2,570 psi at 100°F
- - Steam Pressure Rating: Max 1,965 psi at 350°F
- - Dimensions comply with ASME B16.11 for fittings
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 5.30
- Package Height: 5.40
- Package Weight: 6.65
