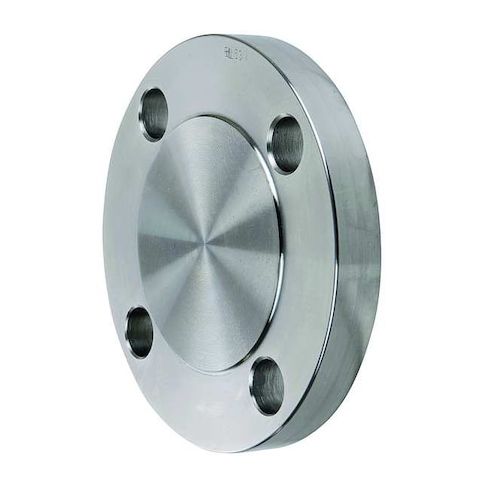

1" Welded SS Blind Flange MPN:4381005020
The ZORO SELECT 4381005020 is a high-quality 1in welded SS blind flange designed for use in piping systems, offering a reliable and leak-free connection. Made from forged 316 stainless steel, this flange provides exceptional corrosion resistance and durability, making it suitable for harsh environments. Its raised face design ensures a secure seal, while the bolted flange connection with 4 bolt holes provides easy installation. This flange is ideal for use in oil and gas, chemical, and food processing industries, as well as in applications where high pressure and temperature resistance are required.
Top product features:
- 316/316L stainless steel provides corrosion resistance and durability
- Raised Face design ensures sealing surface contact for secure connections
- Bolted flange connection with 4 bolt holes allows for secure and reliable assembly
Top product applications:
- High-pressure steam piping systems
- Industrial piping systems for corrosive fluids
- Chemical processing and manufacturing plants
The ZORO SELECT 4381005020 is a stainless steel blind flange made from forged 316 stainless steel, rated for operation within the specified pressure ranges of up to 720 psi for general pressure and 300 psi for steam. The product is intended for use in piping systems in accordance with standard specifications.
Key Features:
- - Material Grade: 316/316L stainless steel, offering corrosion resistance and durability
- - Connection Surface: Raised Face for sealing surface contact
- - Connection Type: Bolted flange connection with 4 bolt holes
- - Bolt Circle Diameter: 3 1/2 inches, indicating bolt hole placement
- - Bolt Hole Diameter: 3/4 inches for bolt sizing
- - Fitting Schedule/Class: Class 300, indicating pressure rating
- - Flange Outside Diameter: 4 7/8 inches
- - Flange Thickness: 11/16 inches
- - Nominal Pipe Size: 1 inch
- - Overall Length: 11/16 inches
- - Standards: ASTM-SA182, ANSI B16.5 compliance
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 0.70
- Package Weight: 3.31
