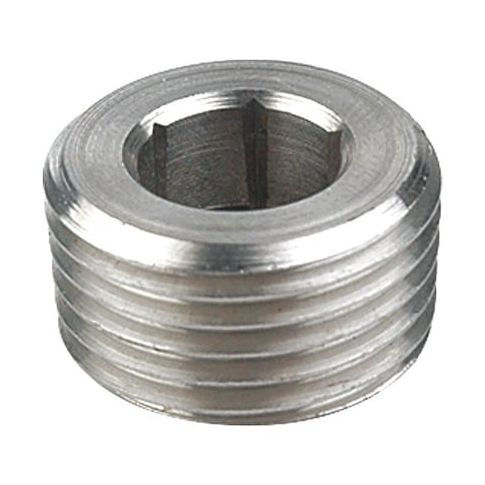

Hex Socket Plug, 1/16 in Nominal Pipe Size, 304 Stainless Steel, Male NPT, Class 150 MPN:40SP112N0116
The ZORO SELECT hex socket plug is a versatile and durable solution for closing off pipes, fittings, and ports in high-pressure applications. Made from corrosion-resistant 304 stainless steel, this plug is designed to withstand extreme temperatures (-60 to 450 °F) and pressures up to 150 psi. Its internal hexagonal recess threading allows for easy tightening or removal with an Allen/hex key, ensuring a secure seal when installed with a thread sealant. Suitable for use in Class 150 pipe fittings, this plug is ideal for industries such as oil and gas, chemical processing, and aerospace, where reliability and safety are paramount.
Top product features:
- Material: 304 Stainless Steel, resistant to corrosion and temperature extremes.
- Design: Hex socket plug with a 3-inch hex drive style for internal hex key application.
- Connection: Male National Pipe Tapered Thread (MNPT) with 1/16 inch thread size and 27 threads per inch.
Top product applications:
- Sealing off the end of a pipe in a corrosive environment
- Capping a port on a machine or equipment
- Blocking a threaded connection in a high-temperature application
The ZORO SELECT - 40SP112N0116 is a stainless steel hex socket plug designed to close off the end of a pipe, fitting, or port. It features internal hexagonal recess threading for tightening or removal with an Allen/hex key, designed to seal the threaded connection when installed with an appropriate thread sealant. Material: 304 stainless steel
- operating temperature range: -60 to 450 °F. This plug is rated for use with Class 150 pipe fittings
- nominal pipe size is 1/16 inch with an outside diameter of 1/16 inch. Maximum working pressure: 150 psi
- Class 150 rating. Key Features:
- - Material: 304 Stainless Steel, resistant to corrosion and temperature extremes.
- - Design: Hex socket plug with a 3-inch hex drive style for internal hex key application.
- - Connection: Male National Pipe Tapered Thread (MNPT) with 1/16 inch thread size and 27 threads per inch.
- - Pressure Rating: 150 psi maximum
- Class 150 rating.
- - Temperature Range: Operating temperature range: -60 to 450 °F.
- - Dimensions: Nominal pipe size of 1/16 inch, outside diameter of 1/16 inch, and overall length of 8 mm.
- - Standards: Manufactured to ASTM A351 specification.
- - Lacks pre-applied thread sealant and does not include a sealing component.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 0.20
- Package Weight: 0.01
