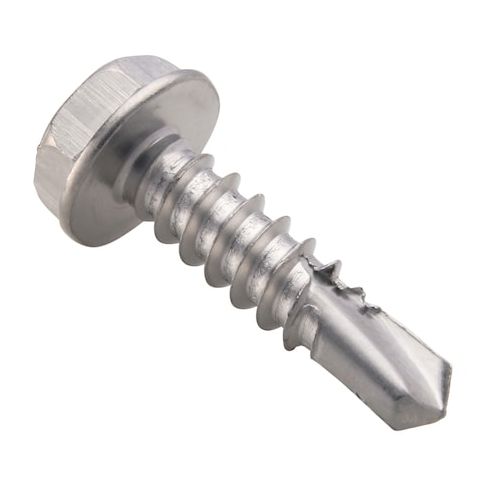

Self-Drilling Screw, #10 x 3/4 in, Plain 410 Stainless Steel Flange Hex Head External Hex Drive MPN:U31860.019.0075

• The ZORO SELECT - U31860.019.0075 is a self-drilling screw intended for use in various fastening applications within industrial and commercial settings. Made from 410 stainless steel, this screw features a drill point at the end, allowing it to be driven directly into materials without pre-drilled holes. It's potentially reducing labor time and effort, depending on the application.




  • Application: Intended to be used for steel-to-steel applications within a range of industrial tasks.
  • CAD Available: A Computer-Aided Design (CAD) file is available for accurate incorporation into digital project plans.
  • Drive & Size: Requires an external hex tool with a drive size of 5/16 inch for installation or removal.
  • Fastener Length: Has a total length of 3/4 inch from its point to the underside of the head, determining how deeply it can penetrate and secure materials together.
  • Finish: Features a plain finish which may contribute to durability, corrosion resistance, appearance enhancement, as well as potential reduction of friction during installation based on usage conditions.
  • Head Type & Size: Features flange hex head type with diameter ranging between 0.120 inches to 0.105 inches ensuring proper load distribution in industrial or commercial applications.
  • Screw Material & Grade: Made from 410 stainless steel which is known for its strength properties and corrosion resistance capabilities. Suitability depends on specific application requirements
  • Screw Size & Thread Style: #10 screw size indicates its width and thread count
  • fully threaded style runs along the entire length of the screw.Security of fastening depends on individual application circumstances
  • Standards Compliance: Adheres to IFI 113 and SAE J78 standards, indicating compliance with established technical specifications for design, safety, and performance.
  • Tip Type: Equipped with a drilling tip intended to be used in self-drilling scenarios where pre-drilled holes may not be necessary. Effectiveness can vary based on material type or other factors.
