1-1/2 in FNPT 316L Stainless Steel Threaded Cap, Class 3000, 1-3/4 in Length MPN:4307001122
1-1/2 in FNPT 316L Stainless Steel Threaded Cap, Class 3000, 1-3/4 in Length

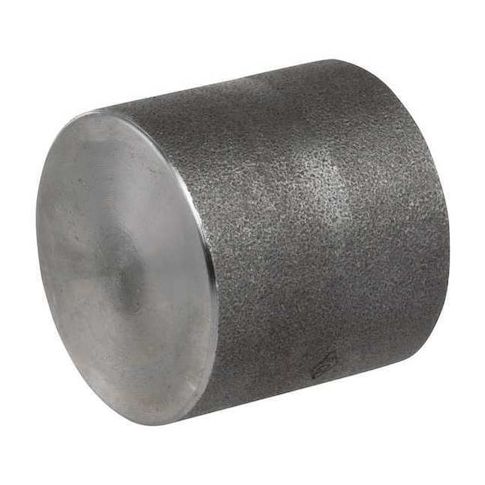

The ZORO SELECT 4307001122 is a stainless steel pipe cap intended to close the end of a pipe and intended for line termination and protection of the pipe interior. It features a Class 3000 pressure rating with a maximum pressure of 3000 psi at 100°F and a maximum steam pressure of 2810 psi at 350°F. This fitting has a Nominal Pipe Size of 1 1/2 inches, an outside diameter of 2-1/2 inches, and overall length of 1 3/4 inches. It uses FNPT connection type for threading and is constructed from 316L stainless steel, conforming to ASME B1.20.1 and ASTM A182 standards. Cap rated for Class 3000 pressure rating.
Key Features:
- - Material: 316L stainless steel for corrosion resistance and durability
- - Pressure Rating: Class 3000, rated for up to 3000 psi @ 100°F
- - Connection Type: FNPT threaded connection
- - Nominal Pipe Size: 1 1/2 inches
- - Outside Diameter: 2-1/2 inches
- - Overall Length: 1-3/4 inches
- - Standards: Conforms to ASME B1.20.1, ASTM A182, and ASME B16.11
- - Max Steam Pressure: 2810 psi @ 350°F
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 2.40
- Package Weight: 1.64
Product info last updated on March 1, 2026 12:32am UTC
Category: Pipes, Valves and Fittings
