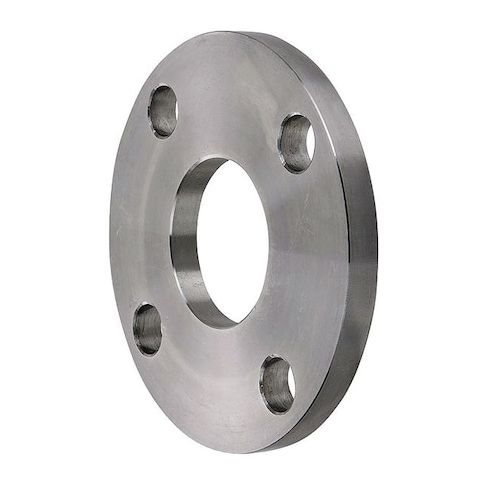

1-1/4" Lap Joint SS Lap Joint Flange MPN:4381005210
This 1-1/4in Lap Joint SS Lap Joint Flange is designed for use in stainless-steel piping systems, ensuring reliable and efficient fluid transfer. Made from forged 316 stainless steel, it offers excellent corrosion resistance and durability. The lap joint connection surface allows for adjustment and rotation for alignment, making it ideal for applications where flexibility is crucial. Suitable for use in a variety of industries, including chemical processing, food and beverage, and pharmaceuticals, this flange provides a secure and leak-proof connection. Its compact design and adjustable features make it a versatile solution for a range of piping needs.
Top product features:
- Forged 316 stainless steel construction for durability and resistance to corrosion
- Lap joint connection surface for adjustment and rotation to ensure proper alignment
- Four 3/4 inch bolt holes on a 3 7/8 inch bolt circle diameter for secure fastening
Top product applications:
- High-pressure piping systems
- Industrial process piping
- Chemical processing plants
The ZORO SELECT 4381005210 is a lap joint flange made of forged 316 stainless steel, intended for use in stainless-steel piping systems as specified. It features a bolt circle diameter of 3 7/8 inches, with four bolt holes of 3/4 inch diameter. The flange has an outside diameter of 5 1/4 inches, a flange thickness of 3/4 inch, and an overall length of 1 1/16 inches. It is rated for operation within the specified pressure ranges listed by the manufacturer. The flange is designed with a lap joint connection surface for adjustment within specified parameters, allowing rotation for alignment, with a nominal pipe size of 1 1/4 inches.
Key Features:
- - Material: Forged 316 Stainless Steel, manufactured from forged 316 stainless steel as specified.
- - Connection Surface: Lap Joint, designed with a lap joint connection surface for adjustment within specified parameters.
- - Pressure Ratings: Rated for operation within the specified pressure ranges listed by the manufacturer.
- - Bolt Configuration: 4 bolt holes, each 3/4 inch in diameter, arranged on a 3 7/8 inch bolt circle diameter.
- - Flange Dimensions: Outside diameter of 5 1/4 inches and flange thickness of 3/4 inch.
- - Overall Length: 1 1/16 inches, ensures proper fit within piping systems.
- - Standards: Manufactured in accordance with ASTM-SA182 and ANSI B16.5 standards.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 5.30
- Package Height: 1.10
- Package Weight: 3.89
