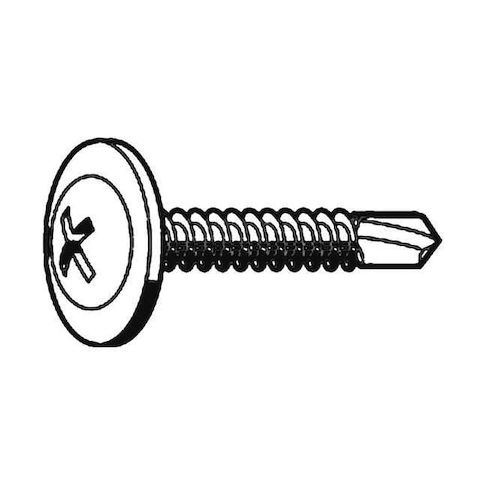

Self-Drilling Screw, #8 x 3/4 in, Zinc Plated Steel Wafer Head Phillips Drive, 200 PK MPN:U29580.016.0075

• The ZORO SELECT - U29580.016.0075 is a self-drilling screw intended for use in steel-to-steel applications. Constructed of steel, these screws feature a drill point at the end and may be driven directly into materials without pre-drilled holes. This characteristic potentially makes them applicable in diverse industrial tasks like metal fabrication, construction, and assembly.




  • Application: Intended primarily for use in fastening steel to steel within commercial or industrial environments.
  • CAD Available: A Computer-Aided Design (CAD) file is provided which includes screw dimensions that can be incorporated into digital project plans.
  • Drive & Size: Requires a Phillips #2 drive tool for installation or removal.
  • Fastener Length: With a length of 3/4 inch
  • this dimension influences potential penetration depth and material securing capability.
  • Finish: Zinc Plated finish enhances durability, corrosion resistance and provides improved grip during installation.
  • Head Type & Diameter: The wafer head type has a diameter of 0.380 inches which could influence load distribution upon full insertion.
  • Screw Size: #8 size refers to its width and thread count per inch which might contribute towards secure fastening within an industrial context
  • Standards Compliance: Complies with SAE J78 standards reflecting alignment with certain technical specifications related to design, safety, and performance

Additional Information
