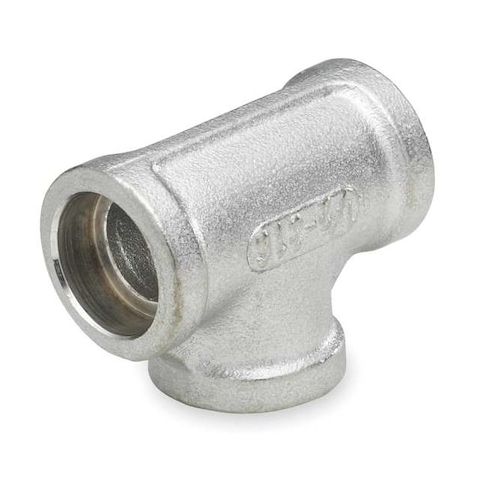

1 in Class 3000 Stainless Steel Socket Weld Tee Fitting, 304L, Female Threaded Ends MPN:4307005114
This 1-inch Class 3000 stainless steel socket weld tee fitting is perfect for industrial applications where high-pressure connections are required. Constructed from 304L grade stainless steel, it offers excellent corrosion resistance and durability. The T-shaped design allows for fluid or gas flow to be split or combined with a 90° branch, making it ideal for use in HVAC, plumbing, and chemical processing systems. With a maximum pressure rating of 2,570 psi at 100°F, this fitting is suitable for use in high-pressure systems, ensuring reliable and efficient fluid transfer. Its compact size and silver finish make it a versatile and attractive option for a variety of applications.
Top product features:
- Material Grade: 304 stainless steel for corrosion resistance.
- Connection Type: Socket weld on all three ends with female gender connections.
- Pressure Class: Class 3000, rated for a maximum pressure of 2,570 psi at 100°F.
Top product applications:
- Steam Power Plants
- Industrial Process Piping
- Chemical Processing Plants
The ZORO SELECT - 4307005114 is a stainless steel Tee pipe fitting constructed from 304 grade stainless steel. It features a T-shaped design that connects three pipe runs, allowing fluid or gas flow to be split or combined with a 90° branch. The fitting utilizes socket weld connections on all three ends, each with a nominal pipe size of 1 inch and female gender. This fitting is classified as Class 3000, with a maximum pressure rating of 2,570 psi at 100°F, and is compatible with pipe schedule 80. The finish is silver in color, and the overall length is 2 3/4 inches with an outside diameter of approximately 1-47/64 inches.
Key Features:
- - Material Grade: 304 stainless steel for corrosion resistance.
- - Connection Type: Socket weld on all three ends with female gender connections.
- - Nominal Pipe Size: 1 inch on each of the three branches (A, B, and C).
- - Pressure Class: Class 3000, rated for a maximum pressure of 2,570 psi at 100°F.
- - Maximum Steam Pressure: Rated for 1,965 psi at 350°F.
- - Pipe Schedule Compatibility: Schedule 80.
- - Dimensions: Outside diameter of 1-47/64 inches and overall length of 2 3/4 inches.
- - Standards: Manufactured in accordance with ISO 9001:2008, ASTM A182, ASME B16.11, and MSS SP-79.
- - Does not include pre-applied thread sealant or additional seals.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.90
- Package Height: 2.40
- Package Weight: 1.45
