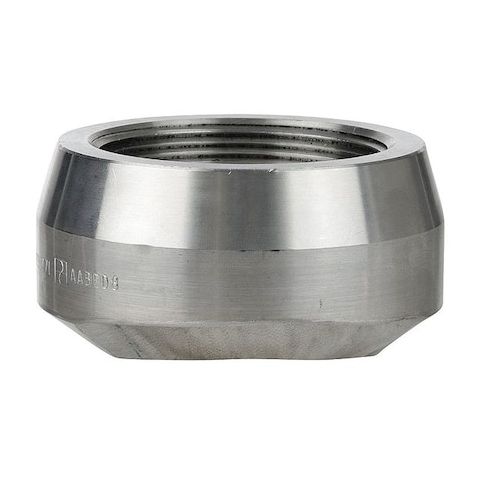

1" FNPT SS Threaded Outlet MPN:4307003640

The ZORO SELECT - 4307003640 is a stainless steel threaded outlet fitting designed for creating pressure-tight branch connections according to applicable standards. Made from grade 316 stainless steel, it features a Class 3000 pressure rating, suitable for use within specified pressure ranges. Its threaded connection type is FNPT, with a female connection on one side (Side A) and a socket connection on the other (Side B). The maximum rated steam pressure is 2810 psi at 350°F. Its threaded connection is FNPT on Side A (female), with a socket connection on Side B. The size specifications are 1 inch nominal pipe size on Side A and 2 inches on Side B. The outside diameter measures 1-9/64 inches for connection compatibility. It complies with MSS SP-97. No pre-applied thread sealant or included seals are provided.

Key Features:

• - Material: 316 stainless steel for corrosion resistance and durability.
• - Pressure Rating: Class 3000, with a maximum allowable working pressure of 3000 psi in accordance with manufacturer specifications.
• - Connection Types: FNPT thread on Side A (female), Socket on Side B.
• - Size Specifications: 1 inch nominal pipe size on Side A, 2 inches on Side B.
• - Outside Diameter: 1-9/64 inches for connection compatibility.
• - Standards: Complies with MSS SP-97.
• - No pre-applied thread sealant or included seals.
