3/8" MNPT x FNPT Brass Piston Spring Check Valve MPN:CHK BRS 610-6M6F-B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0850026

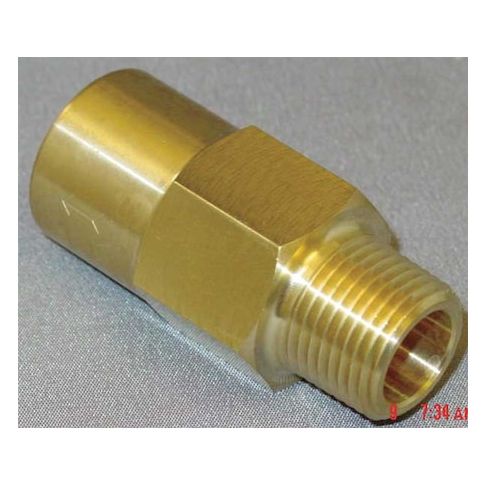

3/8" MNPT x FNPT Brass Piston Spring Check Valve
This 3/8in MNPT x FNPT Brass Piston Spring Check Valve from GoVets Select is a reliable and efficient solution for various industrial applications. Designed for inline installation, it allows for full flow while preventing backflow, making it ideal for use in water supply systems, steam systems, and other applications where backflow needs to be restricted. The valve's brass body and stainless steel spring ensure durability and resistance to corrosion, while its Buna-N seal provides a reliable seal. With a maximum temperature range of 180°F and a maximum water pressure of 500 psi, this valve is suitable for a wide range of applications.
Top product features:
- Inline piston design for unidirectional flow
- Full flow capability to allow uninterrupted fluid passage
- Buna-N seal material for reliable and durable sealing performance
Top product applications:
- Water supply systems
- Steam trap applications
- Industrial process control systems
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Piston, Body Material - Valves Brass, Pipe or Tube Size 3/8 in, Connection Type MNPT x FNPT, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 500 psi, Max. Steam Pressure - Valves Not Rated, Seat Material Brass, Spring Material Stainless Steel, Full Flow - Valves Yes
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.50
- Package Height: 1.10
- Package Weight: 1.02
Product info last updated on February 19, 2026 10:56am UTC
Category: Pipes, Valves and Fittings
