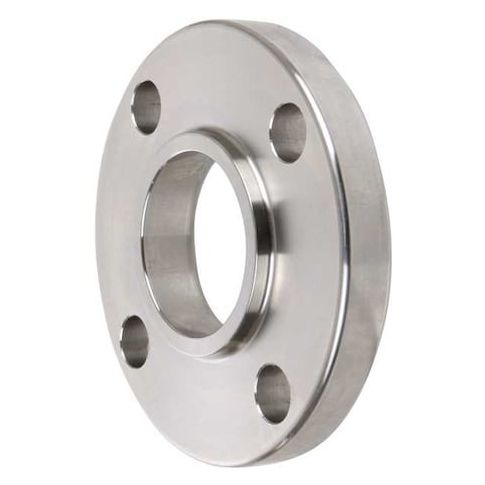

3" Welded SS Slip-On Flange MPN:4381000470
Free Shipping
In Stock
The 3in Welded SS Slip-On Flange from GoVets Select is a reliable and durable solution for various industrial applications. Made from 304 stainless steel, this flange offers excellent resistance to corrosion and can withstand operating temperatures ranging from -60 to 450 Degrees F. With a Class 150 pressure rating, it's suitable for use in a variety of industries, including oil and gas, chemical processing, and power generation. Its raised face connection surface and welded design ensure a secure and leak-tight seal, making it an ideal choice for applications where high pressure and temperature are involved.
Top product features:
- The product is made of 304 stainless steel, which provides corrosion resistance and durability.
- The flange features a raised face connection surface, allowing for a secure and leak-resistant connection.
- The product is designed to be welded, conforming to ANSI B16.5 and ASTM A182 standards, which ensures a strong and reliable joint.
Top product applications:
- Steam System Components
- Chemical Processing Equipment
- Oil and Gas Industry Equipment
The ZORO SELECT - 4381000470 is a 3-inch slip-on flange made of 304 stainless steel, classified as Class 150 for pressure rating. It features a bore sized to slip over the pipe outside diameter and is secured by fillet welds on both the inside and outside, alignment and installation achieved by bore slip-fit over standard pipe OD and fillet welds
- Class 150 pressure rating per ANSI B16.5 and ASTM A182. This stainless steel flange has a raised face connection surface and is designed to be welded, conforming to ANSI B16.5 and ASTM A182 standards. It is silver in color and suitable for operating temperatures ranging from -60 Degrees to 450 Degrees F with a maximum service pressure of 150 psi. Key Features:
- - Material: 304 Stainless Steel
- - Size: 3-inch nominal pipe size
- - Pressure Class: Class 150, max operating pressure 150 psi
- - Flange Outside Diameter: 7 1/2 in
- - Connection Surface: Raised Face
- - Connection Type: Welded
- - Number of Bolt Holes: 4
- - Standards: ANSI B16.5
- ASTM A182
- - Temperature Range: -60 Degrees to 450 Degrees F
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.50
- Package Height: 2.75
- Package Weight: 11.46
