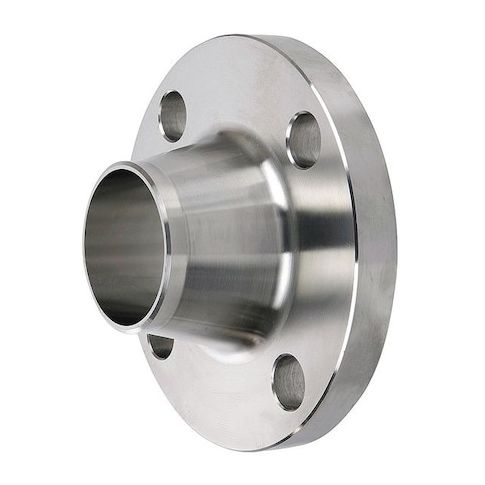

1-1/2 in Stainless Steel Weld Neck Flange, Class 300, Raised Face, Schedule 40 MPN:4381004620
Boost your industrial operations with the ZORO SELECT - 4381004620, a high-performance stainless steel weld neck flange designed for demanding applications. Ideal for high-pressure, high-temperature, cyclic, or corrosive environments, this flange features a long, tapered hub for smooth flow and strong weld joints. Made from 304/304L stainless steel, it offers corrosion resistance and strength suitable for industries such as chemical processing, oil and gas, and power generation. With a Class 300 pressure rating and compliance with industry standards, this flange ensures reliable and efficient performance in a variety of applications, including piping systems, pumps, and valves.
Top product features:
- Made of Forged 304/304L Stainless Steel for durability and corrosion resistance.
- Class 300 pressure rating indicating suitability for high-pressure service.
- Welded connection type for a secure, permanent joint to piping systems.
Top product applications:
- High-pressure chemical processing
- High-temperature power generation
- Corrosive environment water treatment
The ZORO SELECT - 4381004620 is a stainless steel weld neck flange designed for high-pressure, high-temperature, cyclic, or corrosive applications. It features a long, tapered hub intended for butt-welding to a pipe, creating a smooth flow path and a strong, radiused weld joint. Made from 304/304L stainless steel, it offers corrosion resistance and strength suitable for demanding environments. The flange has a bolt circle diameter of 3 7/8 inches, bolt holes of 5/8 inches, and a flange outside diameter of approximately 6 1/16 inches. It is rated for operation at pressures up to 720 psi
- steam pressure limit of 300 psi, and conforms to standards ASTM-SA182 and ANSI B16.5. The flange is specifically designed as a weld neck type with a flange thickness of 3/4 inches, and a total length of 2 11/16 inches.
Key Features:
- - Made of Forged 304/304L Stainless Steel for durability and corrosion resistance.
- - Class 300 pressure rating indicating suitability for high-pressure service.
- - Welded connection type for a secure, permanent joint to piping systems.
- - Bolt circle diameter of 3 7/8 inches with 4 bolt holes, each 5/8 inches in diameter.
- - Flange outside diameter of 6 1/16 inches and flange thickness of 3/4 inches.
- - Nominal pipe size of 1 1/2 inches, compatible with standard piping dimensions.
- - Overall length of approximately 2 11/16 inches and outside diameter at connection end of 6-1/8 inches.
- - Standards: ASTM-SA182 and ANSI B16.5 for compliance with industry specifications.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.50
- Package Height: 6.60
- Package Weight: 7.35
