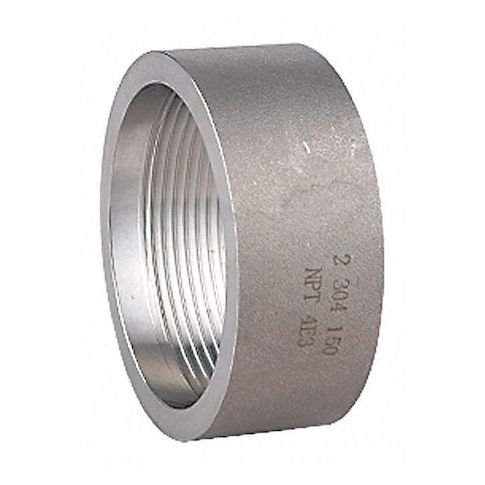

1/8 in FNPT 304 Stainless Steel Half Coupling, Class 150, 300 psi Max Pressure MPN:40HC111N018

• The ZORO SELECT - 40HC111N018 is a 304 stainless steel half coupling designed for connecting or reducing branch pipe connections where a full-length coupling is unnecessary. It features female National Pipe Tapered (NPT) threaded connections on both ends with a nominal pipe size of 1/8 inch. The product is rated for pressure up to Class 150 standards and is compatible with systems including air, natural gas, non-potable water, oil, potable water, and steam, as specified in the product specifications. The half coupling shape allows for installation in space-restricted areas and is suited for branch connections or repair work.

  Key Features:

  • - Material: 304 Stainless Steel
  • - Connection Type: Female NPT threads on both ends
  • - Nominal Pipe Size: 1/8 inch (both ends)
  • - Thread Size: 27 threads per inch on both ends
  • - Pressure Rating: rated for use at pressures up to 300 psi within specified conditions
  • - Rated for use with steam systems up to 150 psi within specified conditions
  • - Color: Silver
  • - Overall Length: 12.7 mm
  • - Standards: Material conforms to ASTM-A-351
  • threads conform to ANSI B1.20.1
  • meets MSS-SP-114 Class 150 pressure ratings
  • - Does not include pre-applied thread sealant or additional seals
  • - Low lead compliance: Compliant for potable water systems
