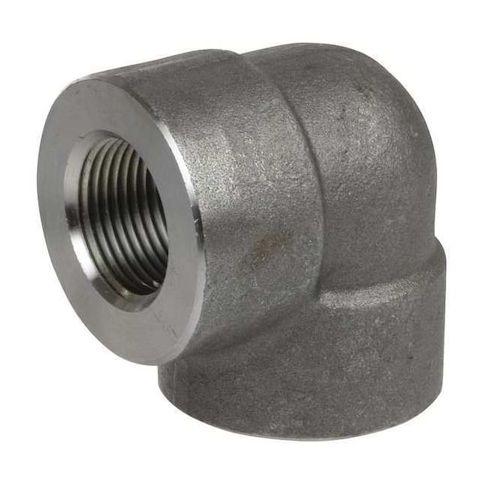

304 Stainless Steel 1 in FNPT 90° Elbow, Class 3000 MPN:2UA59
Free Shipping
In Stock
This 304 Stainless Steel 1 in FNPT 90° Elbow is a versatile and durable pipe fitting ideal for various industrial and commercial applications, including plumbing, HVAC, and chemical processing. Constructed from high-quality 304 stainless steel, it offers excellent corrosion resistance and can withstand maximum pressures of 3000 psi at 100°F and 2500 psi steam at 350°F. The fitting's female NPT threaded connections ensure a secure and leak-free connection, making it perfect for use in high-pressure systems, laboratories, and other environments where cleanliness and reliability are paramount. Its compact design and easy installation make it a convenient choice for a wide range of applications.
Top product features:
- 304 Stainless Steel construction provides corrosion resistance.
- The fitting connects two 1-inch pipes at a right angle (90°) with female NPT threaded connections on both ends.
- The fitting meets industry standards for pressure ratings, including maximum pressures of 3000 psi at 100°F and 2500 psi steam at 350°F.
Top product applications:
- Sanitary Fittings for Brewery or Winery Equipment
- Steam Distribution Systems for Commercial Buildings
- High-Purity Fluid Handling Systems for Pharmaceutical Manufacturing
The ZORO SELECT - 2UA59 is a 90 Degree Elbow stainless steel pipe fitting constructed from 304 stainless steel. It connects two 1-inch pipes at a right angle (90°) with female NPT threaded connections on both ends, sized 11 1/2 threads per inch. Constructed from 304 stainless steel and rated for the maximum pressures specified (3000 psi at 100°F
- 2500 psi steam at 350°F) per ASME B16.11. The fitting meets industry standards including ASTM A182 for material, ANSI/ASME B1.20.1 for threads, and ASME B16.11 for pressure ratings. Key Features:
- - Material: 304 Stainless Steel
- - Configuration: 90 Degree Elbow with female NPT threaded ends on both sides
- - Nominal Pipe Size: 1 inch for both connection ends
- - Thread Size: 11 1/2 threads per inch, female NPT
- - Pressure Rating: Class 3000 (3000 psi @ 100°F maximum pressure)
- - Steam Pressure Rating: 2500 psi @ 350°F
- - Standards: ASTM A182 (material), ANSI/ASME B1.20.1 (threads), ASME B16.11 (pressure class)
- - No pre-applied thread sealant or included seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.83
- Package Width: 2.20
- Package Height: 2.83
- Package Weight: 2.52
