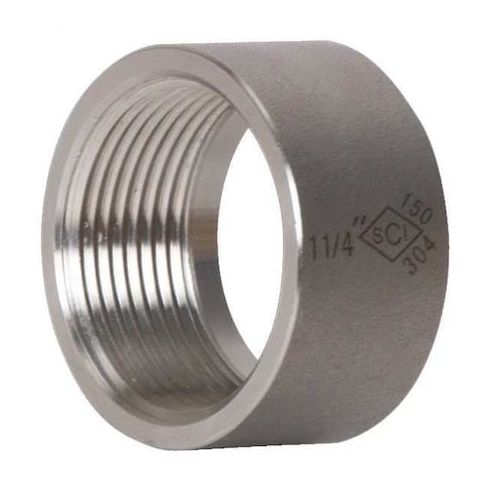

304 Stainless Steel Half Coupling, 1-1/4 in FNPT, Class 150, 300 psi Max Pressure MPN:4381031860

• The ZORO SELECT - 4381031860 half coupling is a stainless steel pipe fitting designed to connect or reduce a branch connection where a full-length coupling is not required or space is limited. It is constructed from 304 stainless steel and meets Class 150 pressure ratings. It is suitable for use with Class 150, Schedule 40 pipes, and conforms to standards including ASTM A-351 for material and ASME B1.20.1 for threads. Overall length 15/16 inch

• outside diameter 1-29/32 inch allow installation in space-restricted areas. Key Features:

  • - Material: 304 Stainless Steel
  • - Shape: Half coupling with shortened length engaging one pipe
  • - Connection type: Female NPT threaded ends on both sides
  • - Nominal pipe size: 1 1/4 inch for both sides
  • - Pressure rating: Class 150 maximum operating pressure of 300 psi at 150°F
  • - Dimensions: Overall length 15/16 inch, outside diameter 1-29/32 inch
  • - Standards: Material conforms to ASTM A-351, threads to ASME B1.20.1, meets MSS-SP-114 Class 150 pressure ratings
  • - Pipe schedule compatibility: Schedule 40
  • - No pre-applied thread sealant or included seals
