PVC Ball Valve 3-Way Union FNPT 1/2 in MPN:161543102
SKU
226-CXG-6FXG2

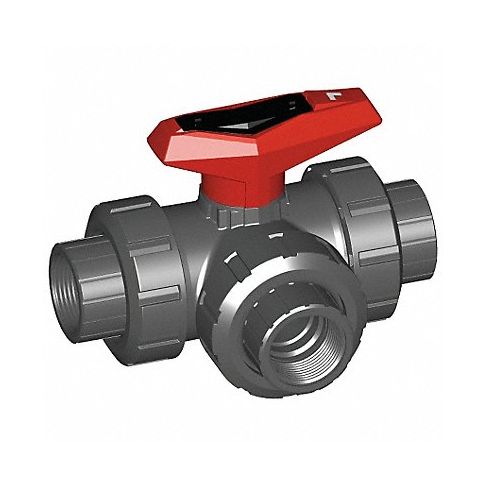

PVC Ball Valve 3-Way Union FNPT 1/2 in
The PVC Ball Valve 3-way union FNPT 1/2 is a high-quality valve designed to control the flow of liquids or gases in various industries, including chemical processing, food & beverage, plumbing systems, and more. The innovative 3-port design enables the diversion of flow in multiple directions, providing flexibility and versatility. This shut-off valve is constructed from PVC material, making it resistant to corrosion and suitable for use with chemicals, acids, and other harsh substances. Its threaded connections ensure a secure fit and easy installation while the manual operation allows for precise control of flow. Additionally, its compact size enables easy access in confined spaces for maintenance or inspection purposes.
Type 543 True Union Ball Valves3-way, full-port valves can be used with Schedule 80 fittings and pipe; can divert flow left/right/off. True union design permits radial installation without flow interruption. With chemical-resistant FPM O-rings.George Fischer Type 543 True Union • Max. pressure: 150 psi at 73°FValves are compact and can perform the work of two 2-way ball valves. For use in chemical industry, pool, and wastewater applications.Meet NSF standards.
Technical Specifications
- Item Ball Valve
- Body Material PVC
- Body Style 3-Way True Union
- General Connection Type Female NPT
- Valve Structure 2-Piece
- Pipe Size 1/2 in
- Connection Type FNPT x FNPT x FNPT
- Port Full L
- Max. Pressure 150 psi CWP
- Max. Steam Pressure 0 psi WSP
- Temp. Range 32 Degrees to 140 Degrees F
- Ball Material PVC
- Seat Material PTFE
- Stem Type Blowout Proof
- Handle Type Tee
- Handle Material Glass Filled Polypropylene
- Stem Material PVC
- Body Seal Material EPDM
- Features Integrated Stainless Steel Mounting Inserts
- Ball Valve Product Group Manual
- Valve Basic Body Material Plastic
- Standards ASTM 1970-01, ASTM D1784, FDA, USP Class VI
- Overall Length 4.16 in
Manufacturer Details
- Manufacturer: GF
- Condensed Mfg Number: 161543102
- MPN: 161543102
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CH
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8481805090
- GDS Category Name: Ball Valves
- GDS Family Name: Shut-Off Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141607
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Ball valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 9:47am UTC
Category: Shut-Off Valves
