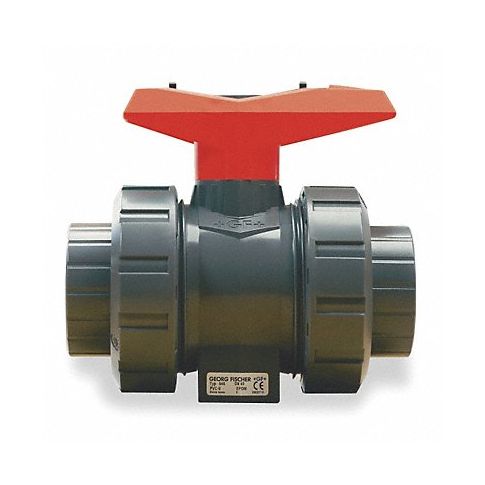

CPVC Ball Valve Union Socket/FNPT 1 in MPN:163546344
SKU
226-CXG-2KE54
CPVC Ball Valve Union Socket/FNPT 1 in
The CPVC ball valve features an easy-to-operate design by means of a handle equipped with a built-in ball bearing, ensuring smooth control over fluid flow even in toughest environments. Its union socket end makes connection fast while its lightweight construction and corrosion resistance feature make it perfect for challenging chemical and harsh applications in the HVAC industry. It offers dependable performance ranging from temperature of -40 degrees Fahrenheit up to 200-degrees Fahrenheit that includes general fluid handling operations, water, gas or liquid, along with its suitability within industries such as chemical processing, pharmaceuticals, commercial and residential applications looking for durable valve solutions.
Featuring a breakaway stem, this GF PIPING SYSTEMS ball valve can be radial installed and is suitable for use with Schedule 80 pipe and fittings. Model can be actuated, and handle has a molded-in wrench for access to valve components. Valve has chemical-resistant seals and is ideal for use in the chemical industry and in swimming pool, aquarium, wastewater, and other corrosive applications.
Technical Specifications
- Item Ball Valve
- Body Material CPVC
- Body Style Inline True Union
- General Connection Type Socket
- Valve Structure 2-Piece
- Pipe Size 1 in
- Connection Type Socket/FNPT x Socket/FNPT
- Port Full
- Max. Pressure 150 psi CWP
- Max. Steam Pressure 0 psi WSP
- Temp. Range 32 Degrees to 176 Degrees F
- Ball Material CPVC
- Seat Material PTFE
- Stem Type Blowout Proof
- Handle Type Tee
- Handle Material Glass Filled Polypropylene
- Stem Material CPVC
- Body Seal Material EPDM
- Features Integrated Stainless Steel Mounting Inserts
- Ball Valve Product Group Manual
- Valve Basic Body Material Plastic
- Standards ASTM 1970-01, ASTM D1784, FDA, NSF 61, USP Class VI
- Overall Length 5.24 in
Manufacturer Details
- Manufacturer: GF
- Condensed Mfg Number: 163546344
- MPN: 163546344
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CH
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481805090
- GDS Category Name: Ball Valves
- GDS Family Name: Shut-Off Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141607
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Ball valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:27pm UTC
Category: Shut-Off Valves
