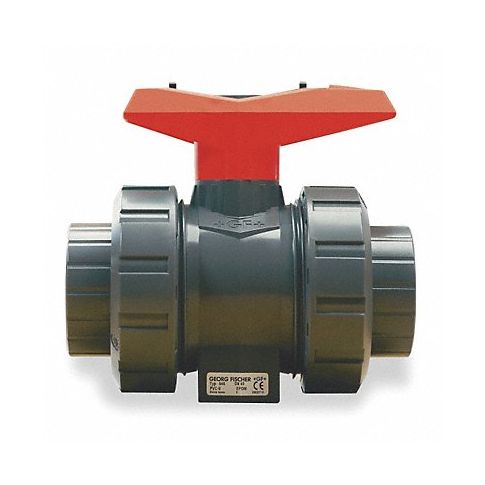

PVC Ball Valve Union Socket/FNPT 1 in MPN:161546344
PVC ball valves are widely used across various industries due to their versatility in handling different applications ranging from flow control to isolation of liquids or gases making them ideal for facility maintenance purposes such as water supply systems or controlling the flow in an irrigation line. Additionally, their FNPT 1/4in threaded end enables easy attachment to various piping systems without leaks thus promoting safe and efficient handling of fluid transportation in cleaning operations within facilities ensuring compliance with health standards. The lightweight PVC body combined with corrosion resistance feature offers extended durability for regular use and is highly resistant to most chemicals making it perfect for use within laboratories, laundry rooms, water treatment plants, among others.
Technical Specifications
- Item Ball Valve
- Body Material PVC
- Body Style Inline True Union
- General Connection Type Socket
- Valve Structure 2-Piece
- Pipe Size 1 in
- Connection Type Socket/FNPT x Socket/FNPT
- Port Full
- Max. Pressure 150 psi CWP
- Max. Steam Pressure 0 psi WSP
- Temp. Range 32 Degrees to 140 Degrees F
- Ball Material PVC
- Seat Material PTFE
- Stem Type Blowout Proof
- Handle Type Tee
- Handle Material Glass Filled Polypropylene
- Stem Material PVC
- Body Seal Material EPDM
- Features Integrated Stainless Steel Mounting Inserts
- Ball Valve Product Group Manual
- Valve Basic Body Material Plastic
- Standards ASTM 1970-01, ASTM D1784, FDA, NSF 61, USP Class VI
- Overall Length 5.24 in
Manufacturer Details
- Manufacturer: GF
- Condensed Mfg Number: 161546344
- MPN: 161546344
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CH
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481805090
- GDS Category Name: Ball Valves
- GDS Family Name: Shut-Off Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141607
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Ball valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
