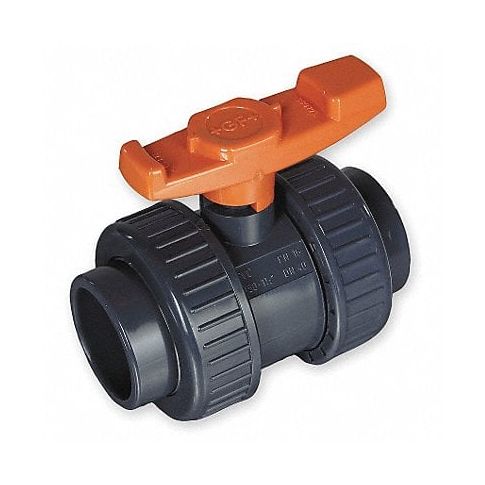

CPVC Ball Valve Union Socket/FNPT 1 in MPN:163375004
CPVC Ball Valve Union Socket/FNPT 1 in
The CPVC ball valve union socket is a versatile fitting for tubing connections suitable to be used within industries such as plumbing, HVAC, sprinkler systems and chemical processing where cleaning or shutting off flow of water needs to be done easily. It features 1 female National Pipe Taper (FNPT) threads allowing connection to various pipes in accordance with industry standards such as ASTM F480 and provides simple and durable performance while maintaining its structural integrity under extreme conditions making it ideal for both residential or commercial applications.
This ball valve features CPVC construction. CPVC is similar to PVC, but has been chlorinated. It is similar to PVC in chemical resistance, but is more ductile, and is capable of withstanding higher temperatures.
Technical Specifications
- Item Ball Valve
- Body Material CPVC
- Body Style Inline True Union
- General Connection Type Socket
- Valve Structure 2-Piece
- Pipe Size 1 in
- Connection Type Socket/FNPT x Socket/FNPT
- Port Full
- Max. Pressure 232 psi @ 73 Degrees F
- Max. Steam Pressure 0 psi WSP
- Temp. Range 32 Degrees to 176 Degrees F
- Ball Material CPVC
- Seat Material PTFE
- Stem Type Blowout Proof
- Handle Type Tee
- Handle Material PVC
- Stem Material CPVC
- Body Seal Material EPDM
- Ball Valve Product Group Manual
- Valve Basic Body Material Plastic
- Standards ASTM 1970-01, ASTM D1784, FDA, NSF 61, USP Class VI
- Overall Length 6.55 in
Manufacturer Details
- Manufacturer: GF
- Condensed Mfg Number: 163375004
- MPN: 163375004
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: IT
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481805090
- GDS Category Name: Ball Valves
- GDS Family Name: Shut-Off Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141607
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Ball valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 11:33pm UTC
Category: Shut-Off Valves
