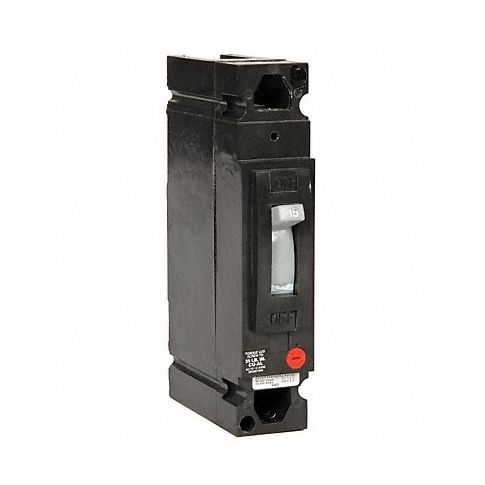

Circuit Breaker 35A 1P 277VAC TED MPN:TED113035WL

TED- and TEHD-frame GE molded case circuit breakers are rated up to 150A and interrupt excessive current flows to protect devices from electrical damage. They're typically used with GE light panels, motor control centers, and panelboards. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Technical Specifications

• Item Molded Case Circuit Breaker
• Amps 35 A
• AC Voltage Rating 277V AC
• Max. AIR Rating 14kA at 120/240/277V AC
• For Use With GE Panelboards
• Series TED
• Circuit Breaker Type Standard
• Number of Poles 1
• DC Voltage Rating 125V DC
• Terminal Connection Line/Load Lug
• Trip Type Thermal Magnetic
• Phase 1
• Instantaneous Trip Fixed
• Phase Connection Any
• Frame Size 150A/TED
• Circuit Breaker Mounting Style Bolt On Panelboard
• Height 6.31 in
• Width 1.38 in
• Depth 4.09 in
• Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
• Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
• Circuit Breaker Actuator Toggle
• Standards CSA Certified, UL Listed

Manufacturer Details

• Manufacturer: GE
• Condensed Mfg Number: TED113035WL
• MPN: TED113035WL

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536308000
• GDS Category Name: Molded Case Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
