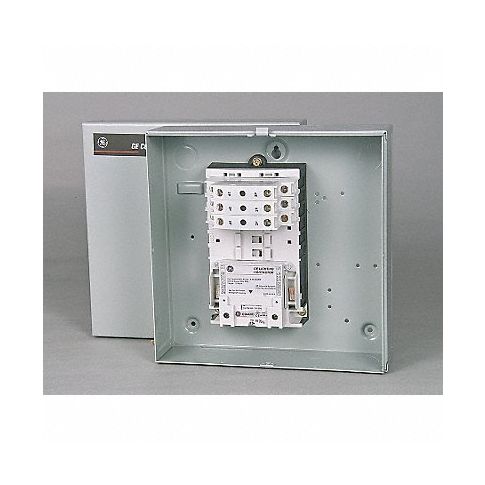

H5429 Lighting Contactr 6P 120V NEMA1 ElecHeld MPN:CR463L60AJA10A0
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3HYA6
H5429 Lighting Contactr 6P 120V NEMA1 ElecHeld
Introducing the GE H5429 Lighting Contactor, the ideal solution for seamless lighting control in commercial and industrial applications. With its advanced electrically held design, this powerful 6P contactor can handle loads up to 30A and boasts a max voltage of 120V AC. Its modular design allows additional power poles to be added easily, while up to four power pole blocks can be converted to NC for enhanced control. The GE H5429 offers numerous benefits, including reduced energy consumption, extended equipment life, and improved overall performance. Perfect for a range of lighting applications, this contactor is an essential component for any smart lighting system. Choose the GE H5429 for superior performance and reliability.
Top product features:
- Modular design for adding power poles
- Supports up to 4 power pole blocks converted to NC
- Electrically held design for smooth operation
Top product applications:
- Commercial lighting control in office buildings, schools, and hospitals
- Industrial lighting control in warehouses, manufacturing plants, and logistics centers
- Shopping mall lighting control
Lighting Contactors• Rated 30A inductive and resistive 7.4"H x 4.2"W x 3.9"D Electrically heldDesign allows additional power poles to be added to a max. of six 1• or 2-pole blocks. Poles are supplied in the NO position on contactor. Up to 4 power pole blocks are field convertible to NC. RoHS Compliant. UL Listed. Mechanically held contactors have built-in control module delays to minimize excessive operation from faulty control devices.
Technical Specifications
- Item Lighting Magnetic Contactor
- Number of Poles 6
- Coil Volts 120V AC
- Full Load Amps 30 A
- Contactor Type Electrically Held
- Enclosure NEMA Rating 1
- Height 10.0 in
- Width 10.0 in
- Depth 4.63 in
- Hz 50/60
- HP @ 1 Phase - 120V 1 hp
- HP @ 1 Phase - 240V 2 hp
- HP @ 3 Phase - 208V 3 hp
- HP @ 3 Phase - 240V 5 hp
- HP @ 3 Phase - 480V 10 hp
- HP @ 3 Phase - 575V 15 hp
- Standards CE, cUL, E1811 Vol 19, UL 508 File
Manufacturer Details
- Manufacturer: GE
- Condensed Mfg Number: CR463L60AJA10A0
- MPN: CR463L60AJA10A0
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Lighting Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00EA510F0
Product info last updated on November 17, 2023 12:16pm UTC Category: Starters and Contactors
