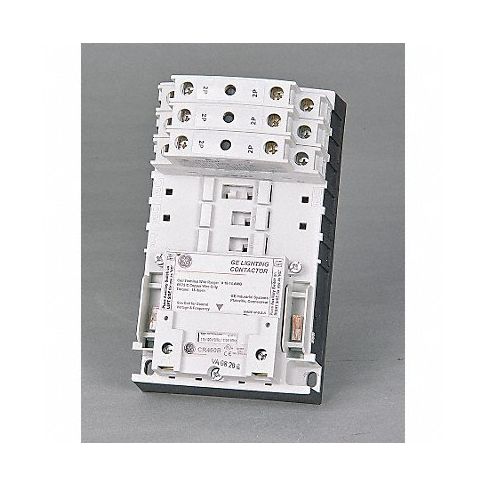

H5223 Lighting Contactr 6P 120V Open ElecHeld MPN:CR463L60AJA
H5223 Lighting Contactr 6P 120V Open ElecHeld
Introducing the H5223 Lighting Magnetic Contactor from Ge! This robust contactor is perfect for controlling AC loads in lighting systems up to 30A. Its six power poles offer maximum flexibility for a variety of applications, including resistive and inductive loads. The electrically held design allows additional power poles to be added as needed, making it an adaptable solution for any electrical installation. With its built-in control module delays, the H5223 minimizes excessive operation from faulty control devices, ensuring reliable performance and longer lifespan. Choose the H5223 Lighting Magnetic Contactor for exceptional power management and control in your next electrical project!
Top product features:
- Six power poles for maximum flexibility
- Electrically held design for easy addition of poles
- Built-in control module delays to prevent excessive operation
Top product applications:
- Lighting control in commercial and industrial settings
- Fan and pump controls
- Emergency lighting systems
Lighting Contactors• Rated 30A inductive and resistive 7.4"H x 4.2"W x 3.9"D Electrically heldDesign allows additional power poles to be added to a max. of six 1• or 2-pole blocks. Poles are supplied in the NO position on contactor. Up to 4 power pole blocks are field convertible to NC. RoHS Compliant. UL Listed. Mechanically held contactors have built-in control module delays to minimize excessive operation from faulty control devices.
Technical Specifications
- Item Lighting Magnetic Contactor
- Number of Poles 6
- Coil Volts 120V AC
- Full Load Amps 30 A
- Contactor Type Electrically Held
- Enclosure NEMA Rating No Enclosure
- Height 7.4 in
- Width 4.2 in
- Depth 3.9 in
- Hz 50/60
- HP @ 1 Phase - 120V 1 hp
- HP @ 1 Phase - 240V 2 hp
- HP @ 3 Phase - 208V 3 hp
- HP @ 3 Phase - 240V 5 hp
- HP @ 3 Phase - 480V 10 hp
- HP @ 3 Phase - 575V 15 hp
- Standards CE, cUL, E1811 Vol 19, UL 508 File
Manufacturer Details
- Manufacturer: GE
- Condensed Mfg Number: CR463L60AJA
- MPN: CR463L60AJA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Lighting Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC
Category: Starters and Contactors
