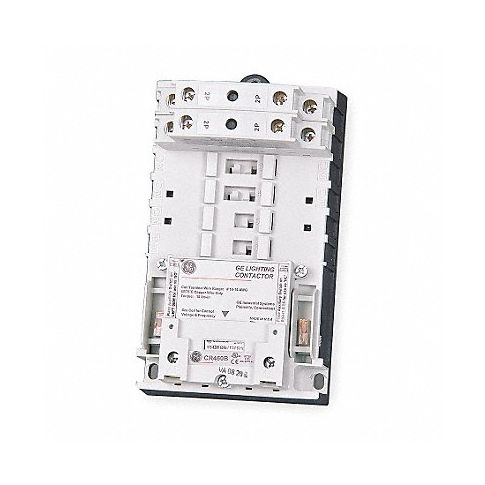

H5222 Lighting Contactr 4P 120V Open ElecHeld MPN:CR463L40AJA
Introducing the H5222 Lighting Magnetic Contactor from General Electric - the ultimate solution for your lighting control needs! This versatile contactor is perfect for use in commercial and industrial applications, offering 4 power poles with a rating of 30A. Its compact design allows additional power poles to be added, making it suitable for a range of applications. The H5222 also features built-in control module delays, ensuring minimal excessive operation from faulty control devices. With its easy-to-use interface and reliable performance, the H5222 is an ideal choice for lighting control in warehouses, factories, office buildings, and more! Upgrade your lighting system with the H5222 Lighting Magnetic Contactor from General Electric today!
Top product features:
- Electrical holding for increased reliability
- Field convertible to NO contact blocks
- Compact design allows for additional power poles
Top product applications:
- Lighting control in commercial buildings
- Lighting control in factories and warehouses
- Lighting control in office spaces
Technical Specifications
- Item Lighting Magnetic Contactor
- Number of Poles 4
- Coil Volts 120V AC
- Full Load Amps 30 A
- Contactor Type Electrically Held
- Enclosure NEMA Rating No Enclosure
- Height 7.4 in
- Width 4.2 in
- Depth 3.9 in
- Hz 50/60
- HP @ 1 Phase - 120V 1 hp
- HP @ 1 Phase - 240V 2 hp
- HP @ 3 Phase - 208V 3 hp
- HP @ 3 Phase - 240V 5 hp
- HP @ 3 Phase - 480V 10 hp
- HP @ 3 Phase - 575V 15 hp
- Standards CE, cUL, E1811 Vol 19, UL 508 File
Manufacturer Details
- Manufacturer: GE
- Condensed Mfg Number: CR463L40AJA
- MPN: CR463L40AJA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Lighting Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
