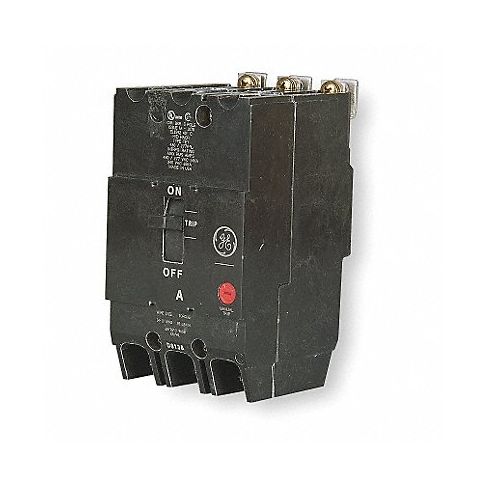

Circuit Breaker 15A Bolt On 277/480V 3P MPN:TEY315

TEY-frame GE molded case circuit breakers are rated up to 125A and interrupt excessive current flows to protect devices from electrical damage. They're typically used with GE light panels, motor control centers, and panelboards. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Technical Specifications

• Item Molded Case Circuit Breaker
• Amps 15 A
• AC Voltage Rating 277/480V AC
• Max. AIR Rating 14kA at 277/480V AC
• For Use With GE AE Lighting Panels
• Series TEY
• High Amp Trip Setting 575
• Circuit Breaker Type Standard
• Number of Poles 3
• DC Voltage Rating 250V DC
• Terminal Connection Lug
• Trip Type Thermal Magnetic
• Phase 3
• Instantaneous Trip Fixed
• Phase Connection ABC
• Frame Size 125A/TEY
• Circuit Breaker Mounting Style Bolt On Panelboard
• Height 5.25 in
• Width 3.0 in
• Depth 3.06 in
• Min. Wire Size 14 AWG
• Max. Wire Size 10 AWG
• Circuit Breaker Actuator Toggle
• Standards CSA, UL

Manufacturer Details

• Manufacturer: GE
• Condensed Mfg Number: TEY315
• MPN: TEY315

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200020
• GDS Category Name: Molded Case Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
