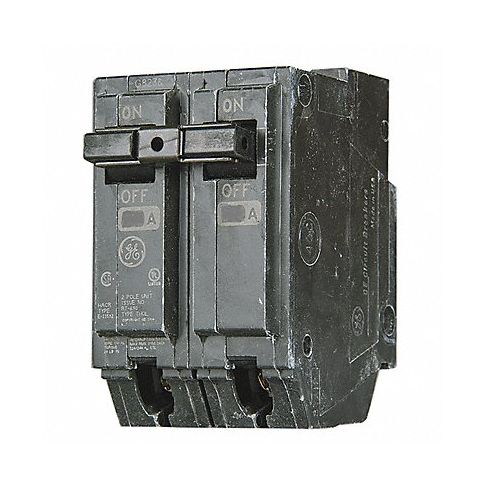

Circuit Breaker 60A Plug In 120/240V 2P MPN:THQL2160
Introducing the Circuit Breaker 60A Plug In 120/240V 2P from Ge - the perfect power management solution for your commercial building or HVAC system. Designed with simplicity in mind, these miniature circuit breakers easily plug into place in panelboards and load centers without requiring DIN rail installation, saving you time and money. The Circuit Breaker 60A is also equipped with a thermal magnetic trip mechanism that automatically detects and interrupts currents to prevent dangerous faults in the circuit. Plus, it connects directly to the power supply through bus bars, eliminating the need for pigtail wires and keeping your panelboard or load center organized. With UL listing for use in HACR applications, this circuit breaker is a reliable and durable option for any setting. Improve safety, organization, and convenience with the Circuit Breaker 60A Plug In 120/240V 2P from Ge today!
Top product features:
- Plug-in design simplifies installation by eliminating the need for DIN rail installation
- Thermal magnetic trip mechanism automatically detects and interrupts currents to prevent dangerous faults in the circuit
- UL listing ensures safety and reliability for HACR applications
Top product applications:
- Commercial buildings can be used in panelboards and load centers to manage power supply in commercial spaces such as offices, retail stores, schools, or hospitals
- HVAC systems can be integrated into heating, air conditioning, and refrigeration systems for managing and distributing power to various components like fans, compressors, or condensers
- Home installations can serve as a convenient and reliable circuit breaker in residential settings for protecting electrical circuits, appliances, and devices against short-circuiting, overheating, or ground faults
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 60 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series AQ
- Phase Single
- Series THQL
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Power Mark Gold Load Centers and AQ Lighting Panels
- Terminal Connection Lug
- Frame Size 100A/THQ
- Length 3.28 in
- Width 2 in
- Depth 2.38 in
- Min. Operating Temp. 140 Degrees F
- Max. Operating Temp. 167 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 3 AWG
- Standards UL Listed
Manufacturer Details
- Manufacturer: GE
- Condensed Mfg Number: THQL2160
- MPN: THQL2160
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
