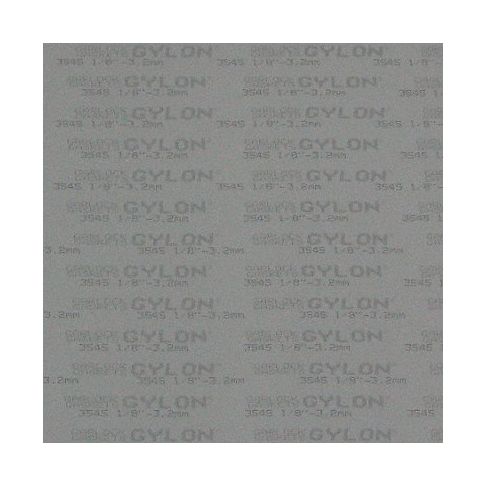

Gasket PTFE 1/8 In T 15 x 15 In MPN:3545
Gasket PTFE 1/8 In T 15 x 15 In
PTFE (Polytetrafluoroethylene) gaskets offer excellent chemical resistance with a high-temperature tolerance capable of handling -400F to +650F making them ideal for various industries including Automotive, Aerospace & Aviation, Chemical processing & electronics offering sealing solution where media impervious or aggressive with other materials can be encountered. Its dimensional stability offers excellent compressive strength preventing leaks while accommodating thermal expansion with a versatile sizing of 1/8 Inch ID & OD (4.76mm) X 15 mm allowing it to serve multiple sealing requirements effectively in pipe, vessel & flange connections thus providing long-lasting performance for harsh environmental conditions for users worldwide.
This Garlock Sealing Technologies® gasket sheet is softer and more flexible than conventional PTFE so it can easily conform to rough and irregular surfaces. Material has minimal creep at elevated temperatures
Technical Specifications
- Item Gasket Sheet
- Type Sheet
- Pipe Size 15 x 15 in
- Thickness 1/8 in
- Length 15 in
- Width 15 in
- Material of Construction Microcellular PTFE
- Max. Pressure (PSI) 1,200 psi
- Temp. Range (F) -450 to 500
- Color White
- Metal Detectable No
- Standards ABS, FDA compliant
Manufacturer Details
- Manufacturer: Garlock
- Condensed Mfg Number: 3545
- MPN: 3545
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3926904590
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Textile gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC
Category: Gaskets
